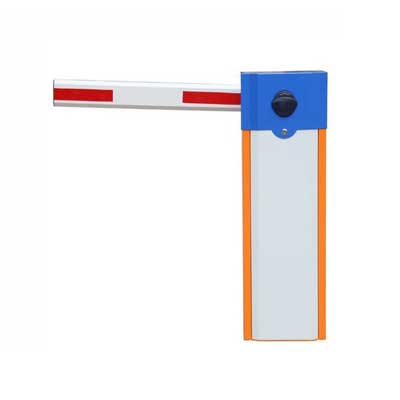

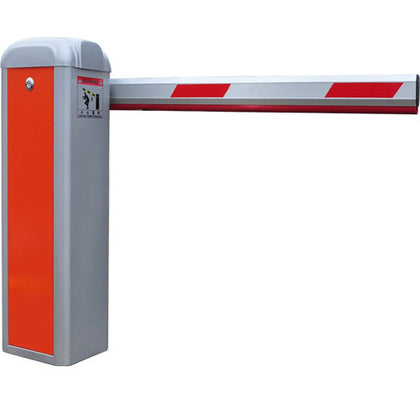

Boom Barrier (IDT PRO 4) 4.5 Mtrs
Boom Barrier (IDT PRO 4) 4.5 Mtrs
Available:In Stock
- Category:Boom Barrier,Entrance Automation
- Manual Release
- Adjustable Left and Right side installations
- Motor cooling fan, solving the problem of heat-protection
- Double safety limit switches (photoelectricity limit switch)
- Auto Close function.
- Duty Cycle 100%
- Support the external and internal Loop Detector (optional)
- Wire control (switch signal)/Remote control (418 Mhz)
- RS 485 Communication module (optional)
Buy In Bulk ContactUs +91 9765629111
X
X
Rs. 0.00
Automatic Boom Barrier with Electro-Mechanical Motor and opening time of 3 sec, suitable for Residential Societies and Industrial Parking.
Automatic Boom Barrier with Electro-Mechanical Motor and opening time of 3 sec, suitable for Residential Societies and Industrial Parking.
Model No | IDT PRO 4 |
Running Time | 3 sec |
Boom Type | Telescopic Boom |
Max Boom Length | 4.5 Mtr |
Boom Dimension | 45 x 100 mm |
Boom Weight | 4.5 kg |
Duty Cycle | 100% |
Voltage | 220 V -/+ 10 %, 110V -/+ 10% |
Frequency | 50 /60 Hz |
Motor Torque | 600 Nm |
Motor Current | 1.3 Amp |
Motor Voltage | 220 V |
Working Life Cycle | > 5 Million |
Power Consumption | 100 Watt |
Thermal Protection | 1400C |
Working Temperature | -350C ~ 850C |
Humidity | 0 – 95% |
Protection Grade | IP 55 |
Weight | 50 – 60 kg |
