RG-UBR12 UHF Micro Reader
● Display: 0.95` true color, OLED screen
● Working frequency: 840~930MHz
(According to the demands, FHSS)
● Protocol: EPC C1 GEN2/ ISO 18000-6C
● Bluetooth: 3.0 EDR+4.0 BLE dual mode
● It can achieve 100meters over the remote communication under the open
environment and BLE equipment.
● Provide Bluetooth API and demo program.
Buy In Bulk ContactUs +91 9765629111

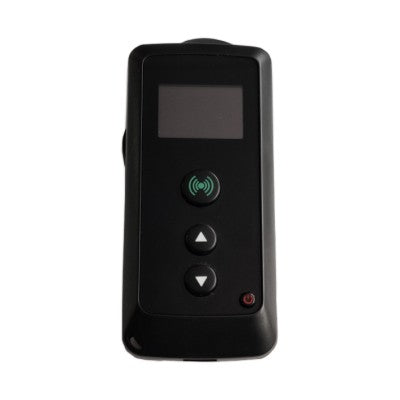

RG UBR12 reader is a super small UHF RFID read Beautiful appearance, compact size, easy to take and with 0.95` true color, OLED screen. It can display the number of the tag, the operation interface for intuitive. It can store the tag data offline, upload tag data via Bluetooth. The reader can support the market is for the occasions which need for portable, low cost, mobile data acquisition such as Anti-fake.
RG UBR12 reader is a super small UHF RFID read Beautiful appearance, compact size, easy to take and with 0.95` true color, OLED screen. It can display the number of the tag, the operation interface for intuitive. It can store the tag data offline, upload tag data via Bluetooth. The reader can support the market is for the occasions which need for portable, low cost, mobile data acquisition such as Anti-fake.
| Storage | Store 100tag data offline, upload via BlueTooth |
| USB | Micro USB, the virtual U disk device, store upgrade file |
| Firmware upgrade | Firmware upgrade offline via update and upgrade file |
| Working voltage | Lithium 3.7V/780mAh, charge by general micro USB cable |
| Working time | Work more than 3hours for continuous reading tag |
| Operating temperature | 0°C~55°C |
| Storage temperature | -10°C~70°C |
| Outline size | 88mm*39mm*16mm |
| Keys | 4functional keys |
| Voice | Speaker |
| Distance of read and write tags | Alien 9662 tag read distance is about 10~15cm |
