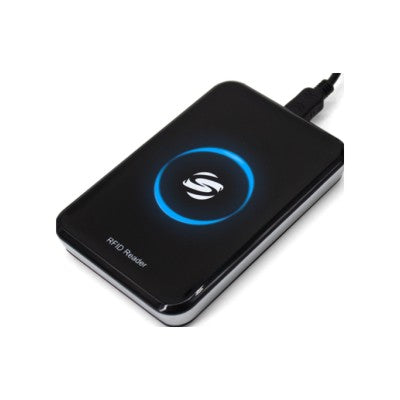

UHF Desktop Reader/Writer IDTS-111UDR
• Made and Assembled in India
• Material: Zinc Alloy + Acrylic
• Supports UHF Read & Write
• Provide Demo Software for Fast Encoding of tags
• Reading speed: upto 30 tags / sec
• Provide SDK for Secondary Development
• Supports Output and Integration with PHP & Web Applications
• Supports HID Keyboard Emulation(Configurable Power and Format)
• UR100 Chipset
Buy In Bulk ContactUs +91 9765629111
UHF Desktop Reader/Writer IDTS-111UDR is a desktop-based UHF Reader working in the 865 - 867 Frequency Band. UHF RFID Desktop reader is one of the most widely used UHF Desktop readers & writers generally used for tag registration and activation. It works on global UHF frequency protocols and is used for quick tag authentication, tag read and write activation, and tag blocking /killing. With an anti-collision algorithm and high tag read/write capability this device can be used in any industry application. It is portable in nature and can be carried easily because of its compact design and quick installation method which is USB.
UHF Desktop Reader/Writer IDTS-111UDR is a desktop-based UHF Reader working in the 865 - 867 Frequency Band. UHF RFID Desktop reader is one of the most widely used UHF Desktop readers & writers generally used for tag registration and activation. It works on global UHF frequency protocols and is used for quick tag authentication, tag read and write activation, and tag blocking /killing. With an anti-collision algorithm and high tag read/write capability this device can be used in any industry application. It is portable in nature and can be carried easily because of its compact design and quick installation method which is USB.
Model No. | IDTS – 111UDR |
Frequency range | India : 865-867 MHz |
RF output | 0-20dBm adjustable |
Communication interface | USB |
Application software | Free Demonstration Software and SDK |
Tag Operation Performance | |
Reading distance | 0 – 50 cm |
Air interface | EPC global UHF ISO-18000-6C(EPC G2) |
Operating Mode | Answer – Supports Read & Write
Active – Supports HID Keyboard Emulation |
Reading Rate | Software Programmable |
Reading Clue | Buzzer and LED |
Mechanical and Electrical Performance | |
Material | ZINC Alloy + Acrylic |
Dimension | 110mm×70mm×15mm |
Power supply | USB |
Net Weight | 150g |
Humidity | 80% non-condensing |
Protection grade | IEC IP40 |
Regulatory | Compliant with CE, FCC |
Operation Temp. | -20 ºC to +60 ºC |
