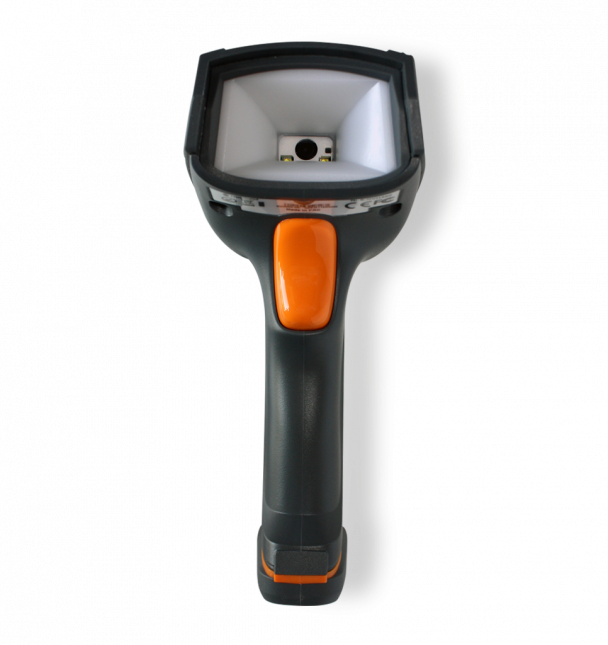

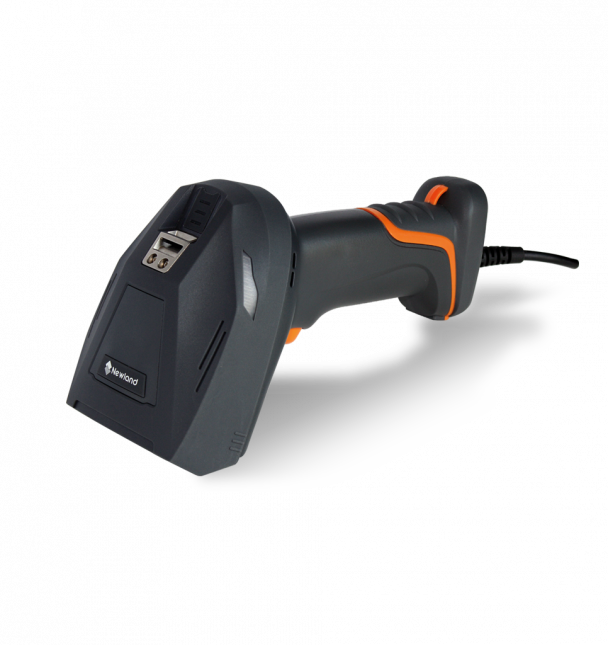

NVH300 Angler DP
- Category:Barcode & QR Reader,Barcode Reader
- Model No. : NVH300
- Interfaces : RS-232, USB
- Type of Opration : laser
- Reading Range : Max 2m/s (6.56ft/s)
Buy In Bulk ContactUs +91 9765629111
The NVH300 Angler DP is perfect for scanning DPM barcodes even on reflective, curved or shiny surfaces with its advanced illumination. The intelligent light system switches between illumination types to adjust to the existing light source and simplify the scanning of difficult barcodes. The rugged industrial design and IP64 housing guarantee that the scanner survives even in the harshest environments.
The NVH300 Angler DP is perfect for scanning DPM barcodes even on reflective, curved or shiny surfaces with its advanced illumination. The intelligent light system switches between illumination types to adjust to the existing light source and simplify the scanning of difficult barcodes. The rugged industrial design and IP64 housing guarantee that the scanner survives even in the harshest environments.
Image Sensor | 1280x960 CMOS |

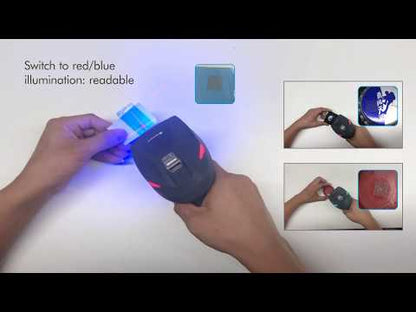

Illumination | Direct: White LED; Diffuse: Ring of red LEDs, Ring of blue LEDs |
Aiming | 650nm laser diode |
Depth of Field Code 39 (5mil) | 18mm-90mm |
Depth of Field Data Matrix (10mil) | 0mm-90mm |
Depth of Field QR (15mil) | 0mm-90mm |
Minimal Print Contrast | 20% |
Scan Angle Roll | 360° |
Scan Angle Roll | ±60° |
Scan Angle Skew | ±55° |
Field of View Horizontal | 41° |
Field of View Vertical | 31° |
Motion Tolerance | Max 2m/s (6.56ft/s) |
1D | All major 1D symbologies, including EAN 8, EAN 13, UPC E, UPC A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128. |
2D | All major 2D symbologies, including QR Code, Data Matrix. |
Dimensions (mm) | 76(W) x 107(D) x 185(H) mm |
Weight | 245g |
Interfaces | RS-232, USB |
Notifications | Beep, LED indicator, vibration |
Input Voltage | 5VDC±5% |
Current @ 5VDC Operating | 450mA (typical), 475mA (max) |
Power Consumption | 2250mW (typical) |
Operating Temperature | -20°C to 50°C (14°F to 122°F) |
Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
Humidity | 5% to 95% (non-condensing) |
Electro Static Discharge (ESD) | ±8 KV (direct discharge); ±16 KV (air discharge) |
Drop | 1.8m |
IP Rating | IP64 |
Configuration Tools | NSet |
