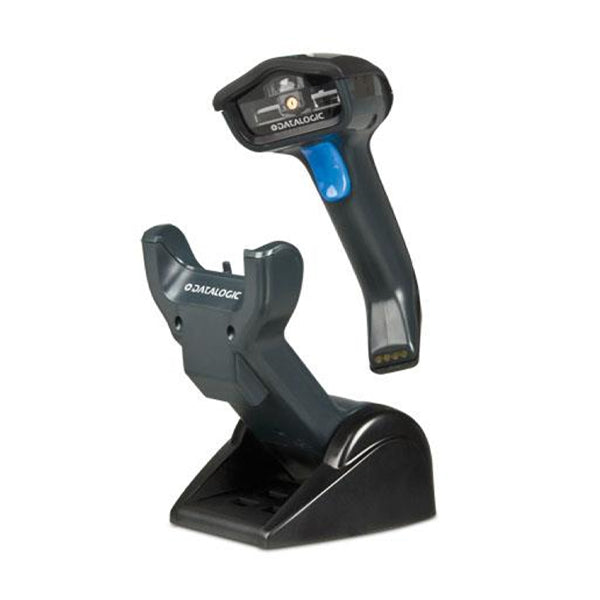

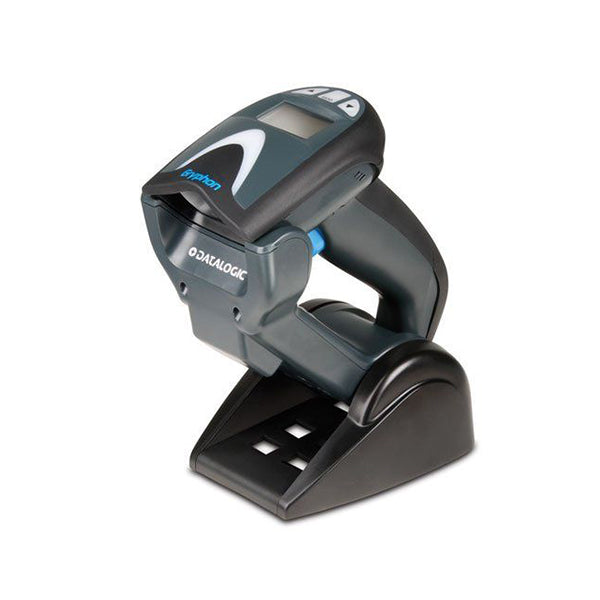

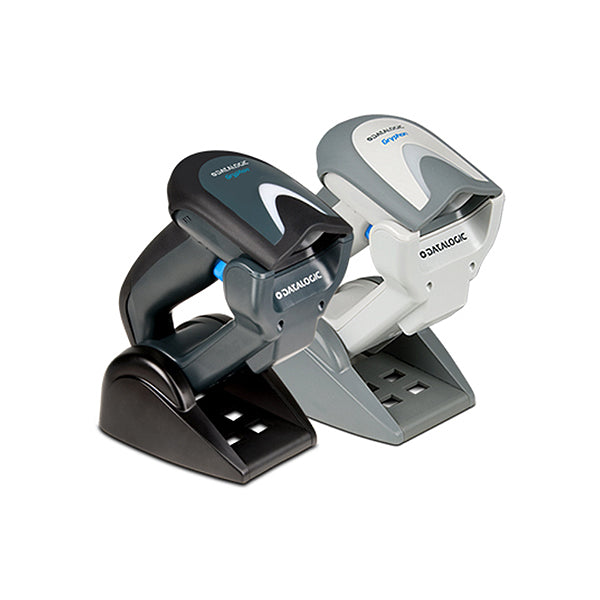

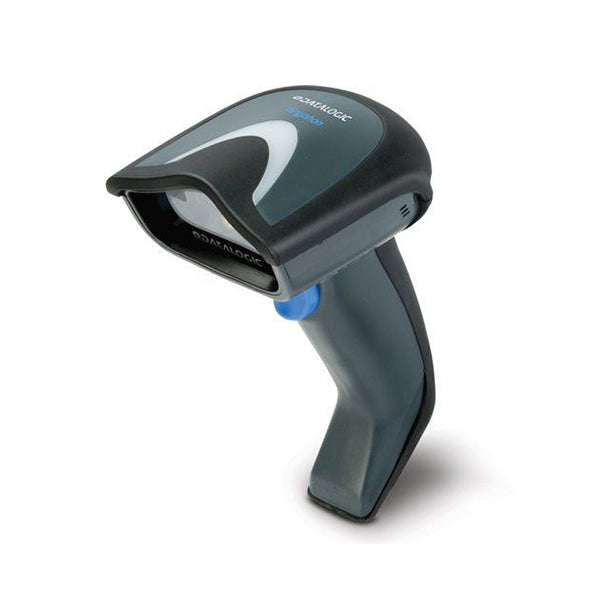

Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Mobile communications also eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees.
GM4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long-lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station.
Applications:
|
Model No |
Datalogic GRYPHON 4100 |
|
Interface |
RS-232 / IBM 46XX / USB Multi-Interface RS-232 / USB / Keyboard Wedge / Wand MultiInterface |
|
COLORS AVAILABLE |
Black; White |
|
DIMENSIONS |
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
|
DISPLAY |
Display Type: GM4100-D Only: Graphic with backlight; Font Dimensions: User selectable (4 lines x 16 columns default) Screen Dimensions: 32 x 96 pixels |
|
WEIGHT |
Cradle: 246.0 g / 8.7 oz; Reader (with Display): 246.0 g / 8.7 oz. |
|
BATTERY |
Battery Type: Lithium-Ion, 2100 mAh Charge Time: External Power: 4 Hours @ 12 VDC Reads per Charge: 50,000 |
|
CRADLE INDICATOR LEDS |
Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) |
|
CURRENT |
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5 VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC |
|
INPUT |
VOLTAGE 4.75 - 14 VDC +/- 5% |
|
READ RATE (MAXIMUM) |
325 reads/sec |
|
READING ANGLE |
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65° |
|
RESOLUTION (MAXIMUM) |
0.076 mm / 3 mils |
