Newland Wahoo Bluetooth HR15 | RS-232, USB
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

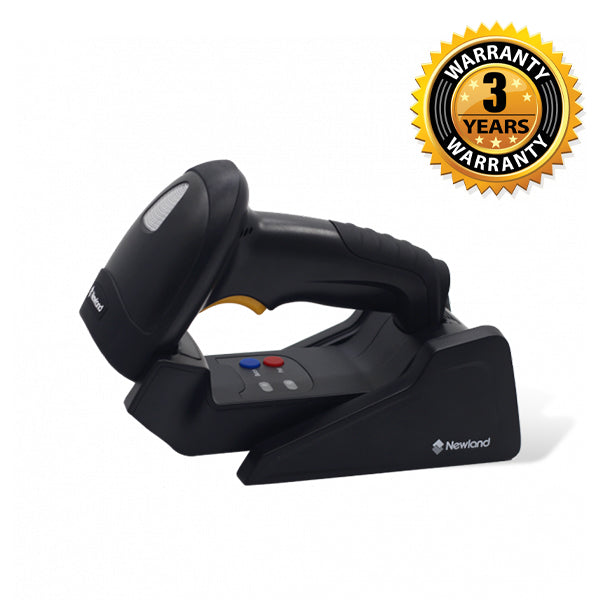

Newland Wahoo Bluetooth HR15 | RS-232, USB

Available:In Stock
  • Model no. : HR15
  • Interfaces : RS-232, USB
  • Type of Opration : CCD
  • Battery Type : 2200 mAh lithium-ion battery
  • High-Performance 1D Scanning


Rs. 7,569.00

(Tax & Fright Extra)

Buy In Bulk ContactUs +91 8411958300

X

Adopting the latest Bluetooth 5.0 technology, the Newland Wahoo Bluetooth HR15 | RS-232, USB is able to maintain a strong, anti-interference connection to transmit data. Whether mounted vertically or horizontally, upright or flat, the HR15 Wahoo Bluetooth is ready to go to work.

High-Performance 1D Scanning.
The HR15 Wahoo Bluetooth combines Newland's own UIMG decoding with our latest linear imager scanning technology to produce snappy scanning on 1D codes. Printed or displayed on a variety of materials the Wahoo scans at a distance and speed closer to the performance expected from that laser scanners than from traditional CCD.

Reliable Wireless Connection.
Adopting the latest Bluetooth 5.0 technology, the HR15 Wahoo Bluetooth is able to maintain a strong, anti-interference connection to transmit data. Achieving communication distances of up to 50m, the Wahoo is at home in a tightly localized workspace where wires are unwanted clutter, as it is to bridge wider gaps from a host to a scanner.

Seven scanners to one base station.
The BT5.0 technology selected for the HR15 Wahoo Bluetooth allows up to 7 scanners to be paired to a single base station, allowing coordinated scanning applications to transmit data to a single host. This maximizes available human resources without having to match up each scanner with a different PC, tablet, or mobile computer.

Real-time and batch.
The intelligence in the HR15 Wahoo Bluetooth allows the user to move seamlessly from direct BT download to a host. When out of range, it can store captured codes and download them when back in range. With its large memory capacity, enabling storage of up to 15,000 standard EAN barcodes, the Wahoo can be set up to work as a pure data collector.

Stamina in the workplace.
The HR15 Wahoo Bluetooth is built to be dropped from 1.5m and sealed for dust and moisture. It has a battery capacity designed to prop up its efficient power consumption to over 15 hours.

Powerful Data Editing.
The HR15 Wahoo Bluetooth is compatible with Newland's Easy set configuration software, allowing users to create the ideal configurations to match the Wahoo's incredible scanning performance with the application requirements.

Adopting the latest Bluetooth 5.0 technology, the Newland Wahoo Bluetooth HR15 | RS-232, USB is able to maintain a strong, anti-interference connection to transmit data. Whether mounted vertically or horizontally, upright or flat, the HR15 Wahoo Bluetooth is ready to go to work.

High-Performance 1D Scanning.
The HR15 Wahoo Bluetooth combines Newland's own UIMG decoding with our latest linear imager scanning technology to produce snappy scanning on 1D codes. Printed or displayed on a variety of materials the Wahoo scans at a distance and speed closer to the performance expected from that laser scanners than from traditional CCD.

Reliable Wireless Connection.
Adopting the latest Bluetooth 5.0 technology, the HR15 Wahoo Bluetooth is able to maintain a strong, anti-interference connection to transmit data. Achieving communication distances of up to 50m, the Wahoo is at home in a tightly localized workspace where wires are unwanted clutter, as it is to bridge wider gaps from a host to a scanner.

Seven scanners to one base station.
The BT5.0 technology selected for the HR15 Wahoo Bluetooth allows up to 7 scanners to be paired to a single base station, allowing coordinated scanning applications to transmit data to a single host. This maximizes available human resources without having to match up each scanner with a different PC, tablet, or mobile computer.

Real-time and batch.
The intelligence in the HR15 Wahoo Bluetooth allows the user to move seamlessly from direct BT download to a host. When out of range, it can store captured codes and download them when back in range. With its large memory capacity, enabling storage of up to 15,000 standard EAN barcodes, the Wahoo can be set up to work as a pure data collector.

Stamina in the workplace.
The HR15 Wahoo Bluetooth is built to be dropped from 1.5m and sealed for dust and moisture. It has a battery capacity designed to prop up its efficient power consumption to over 15 hours.

Powerful Data Editing.
The HR15 Wahoo Bluetooth is compatible with Newland's Easy set configuration software, allowing users to create the ideal configurations to match the Wahoo's incredible scanning performance with the application requirements.

Performance

Image Sensor

2500 CCD

Memory Flash

≥15000 pieces Code 128 (20 byte of each code 128)

Illumination

Red LED (622nm-628nm)

Depth of Field EAN 13 (13mil)

55mm-550mm

Depth of Field Code 39 (5mil)

90mm-160mm

Minimal Print Contrast

≥25%

Scan Angle Pitch

±60°

Scan Angle Skew

±60°



Data Capture

1D

All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.



Physical

Dimensions (mm)

Scanner: 113.5(W)x73.3(D)x159.0(H)mm

Weight

Scanner: 213g

Interfaces

RS-232, USB

Battery Type

2200 mAh lithium-ion battery

Expected Battery Life

≥12 hours of continuous operation (scan once per 6 seconds)

Expected Charge Time

≤4 hours (with power adapter)

Notifications

Beep, LED indicator

Input Voltage

5VDC±5%



Environmental

Operating Temperature

-20°C to 50°C (14°F to 122°F)

Storage Temperature

-40℃ to 70℃ (-40°F to 158°F)

Humidity

5% to 95% (non-condensing)

Electro Static Discharge (ESD)

±8KV (air discharge); ±4KV (direct discharge)

Drop

Scanner: 1.5m Cradle: 1m

IP Rating

IP42



Wireless

WPAN RADIO

Bluetooth 5.0

Wireless Distance (max.)

≥50m/164ft (direct line of sight in the open air)

Communication Modes

Synchronous, asynchronous, and batch modes



Software

Configuration Tools

EasySet



Certifications

Hardware

FCC Part15 Class B, CE EMC Class B
