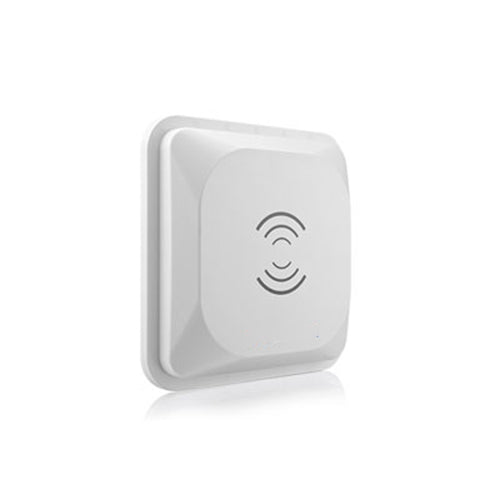

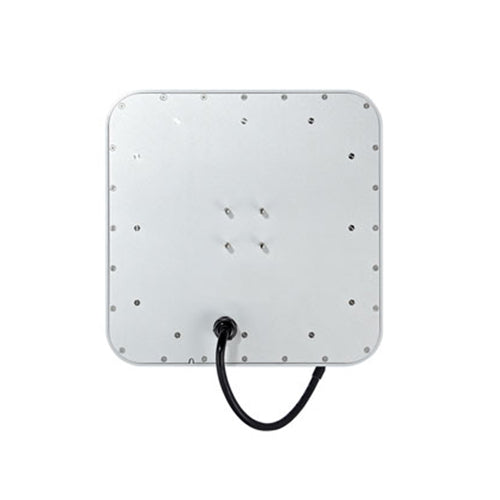

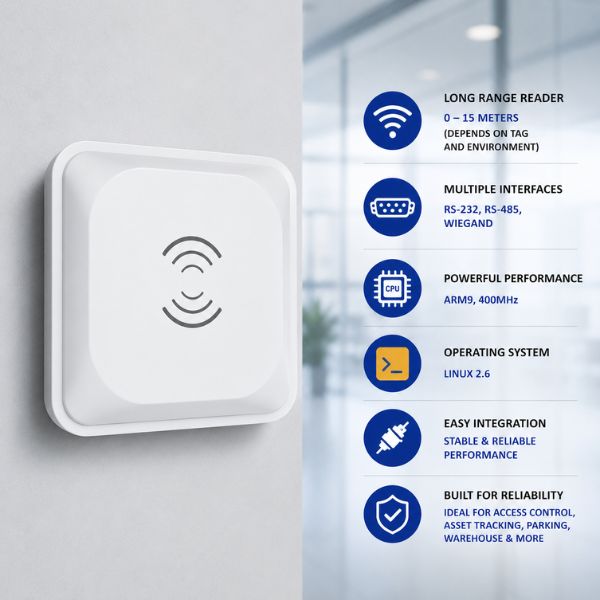

SRK-HR15 | RFID UHF Long Range Reader | 0-15m | RS-232, RS-485, Wiegand
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

SRK-HR15 | RFID UHF Long Range Reader | 0-15m | RS-232, RS-485, Wiegand

Available:In Stock


Rs. 35,530.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

Click Here For Bulk Enquiry

+91 8411958300




info@srkinnovations.com

  • Model No:- SRK-HR15
  • Reading Range : 0-15m
  • Processor: ARM9, 400MHz
  • Operating System: Linux 2.6
  • Memory: Flash 128MB; DRAM 32 MB
  • Dimensions: 290mm(L)*290mm(W)*55mm(H)
  • 1 Year Warranty in all products
  • SDK and APIs are available for support
X

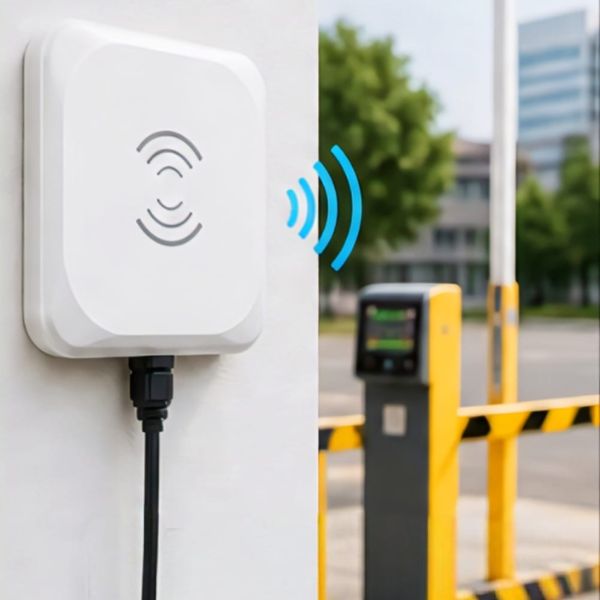

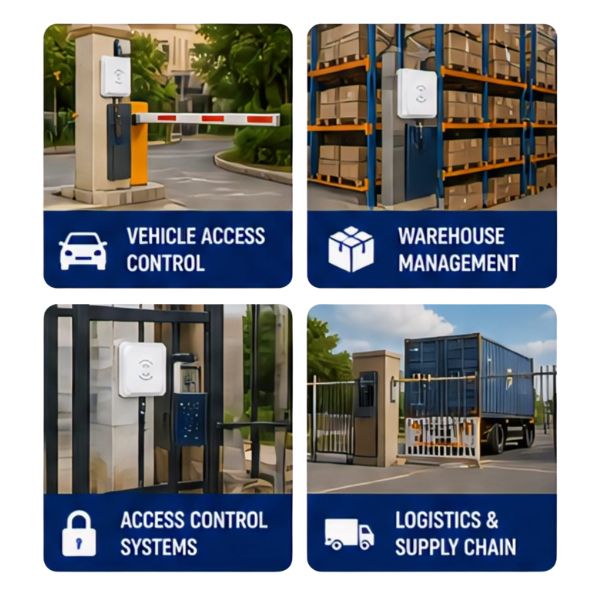

UHF READER is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.



UHF READER is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.



Characteristics

Air Protocol

ISO/IEC18000-6B, 6C / EPC C1Gen2

Chipset

IMPINJ Indy R2000

Frequency

USA: 902 MHz-928MHz (FCC part 15)

EU: 865-868MHz (ETSI EN 302208)

CN: 920-925MHz, CMIIT)

Supportable / Optional: Russian / Japan / Korea / Malaysia / Thailand / other Customizable

Output Power

0dBm-30dBm

Reading Range

0-15m (According to Tag & Environment)

Channel Bandwidth

<200KHz

Anti-Collision

RSSI / Multi-tag / Intensive Inventory Supportable

Work Mode

Fixed / Hop Frequency Optional

Antenna

9dBi Bulit-in Circular Polarization

Phychips

PR9200

Hardware,OS and Firmware

Processor

ARM9, 400MHz

Memory

Flash 128MB; DRAM 32 MB

Operating System

Linux 2.6

Firmware Upgrade Method

Demo Software / Telnet

Programing Funtion

Function

Automatic Reading/ White List

Data Mode

Breakpoint Resume / Match Reading / Data filter

Format

Data Format Customizable (PLC / Modbus Compatible)

Service

RF Micron / EM Temperature Sensor Custom Services

Physical

Dimensions

290mm(L)*290mm(W)*55mm(H)

Weight

1.6Kgs

Housing Material

Aluminium Plate / ABS Cover

Connectivity

Communications

RJ45, RS-232, RS-485, Wiegand

General Purpose I/O

1 Input, 1 Pair 5V Output or Wiegand Output

Power Supply

DC 24V/2.5A (DC 9V ~ 30V,60W)

Environmental

Operating Temperature

-20 - +70°C

Storage Temperature

-40 - +85°C

Humidity

Humidity:5-95% Non-condensing (+25℃)

Sealing

IP66

Operating Temperature

-20 - +70°C
