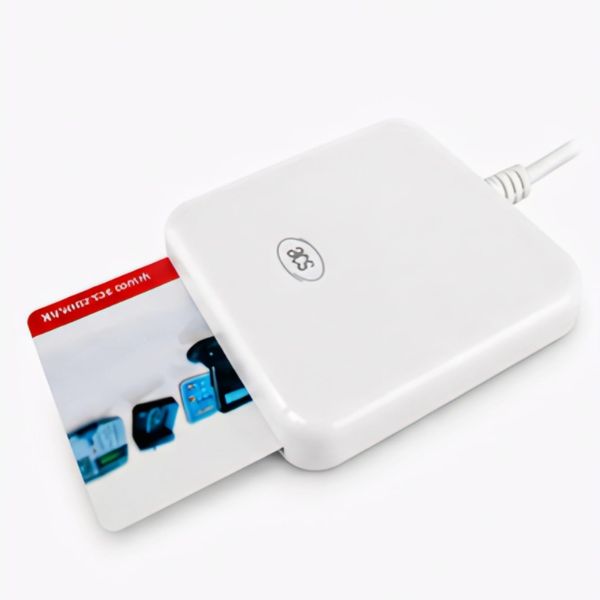

ACR-38U CONTACT SMART CARD Reader
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
• Cards with ‘104’ type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
• Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
• Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
• Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
Buy In Bulk ContactUs +91 9765629111
ACR38-IPC is the latest addition to the ACR 38 PC-Linked Smart Card Reader Series Combining secure smart card reader technology functionalities with a sleek and modem design, ACR38 IPC is the perfect peripheral for your smart card applications. ACR38-IPC supports ISO 7816 smart cards and works with memory cards and microprocessor cart, with the T=0 and T= 1 protocol.
\nThe new sleek and stylish design of ACR3MIPC makes it stand out from ordinary smart card readers. This trendy device houses the powerful ACR38 core, which has been proven to support highly demanding smart card applications. It also features a USB Full Speed interface and a smart can run on a speed of 344Kbps. Highly durable, ACR38-IPC can last for at least 100,000 card insertion cycles. ACR38-IPC is easy to install, use, and integrate in a PC environment. It is PC/SC and CCID compliant and drivers are compatible with Windows Operating Systems, Linux, and MAC. ACR38-IPC can be used in numerous operations for Banking and Payment, Physical and Logical Access Control, Transportation, and e-government applications.
ACR38-IPC is the latest addition to the ACR 38 PC-Linked Smart Card Reader Series Combining secure smart card reader technology functionalities with a sleek and modem design, ACR38 IPC is the perfect peripheral for your smart card applications. ACR38-IPC supports ISO 7816 smart cards and works with memory cards and microprocessor cart, with the T=0 and T= 1 protocol.
\nThe new sleek and stylish design of ACR3MIPC makes it stand out from ordinary smart card readers. This trendy device houses the powerful ACR38 core, which has been proven to support highly demanding smart card applications. It also features a USB Full Speed interface and a smart can run on a speed of 344Kbps. Highly durable, ACR38-IPC can last for at least 100,000 card insertion cycles. ACR38-IPC is easy to install, use, and integrate in a PC environment. It is PC/SC and CCID compliant and drivers are compatible with Windows Operating Systems, Linux, and MAC. ACR38-IPC can be used in numerous operations for Banking and Payment, Physical and Logical Access Control, Transportation, and e-government applications.
| Dimensions | ACR38U-I1: 72.2mm (L) x 69.0mm (W) x 14.5mm (H) |
| Interface | USB 2.0 Full Speed |
| Supply Voltage | Regulated 5V DC |
| Supply Current | Max. 50mA |
| Operating Temperature | 0-50°C |
| CLK Frequency | 4 MHz |
| MTBF | 500,000 hrs |
| Smart Card Interface Support | ISO- 7816 Class A, B and C ( 5V, 3V, 1.8V ) |
| Compliance/Certifications | EN60950/IEC 60950, ISO 7816, CE, FCC, UL, VCCI, PC/SC, CCID, EMV 2000 Level 1, RoHS, REACH, USB Full Speed
Microsoft WHQL: Windows 2000, 2003, XP, Vista, 2008, 2008 R2, 7, 8, 2012 |
| Operating System Support | Win98, Win ME, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8.
Mac Linux |
