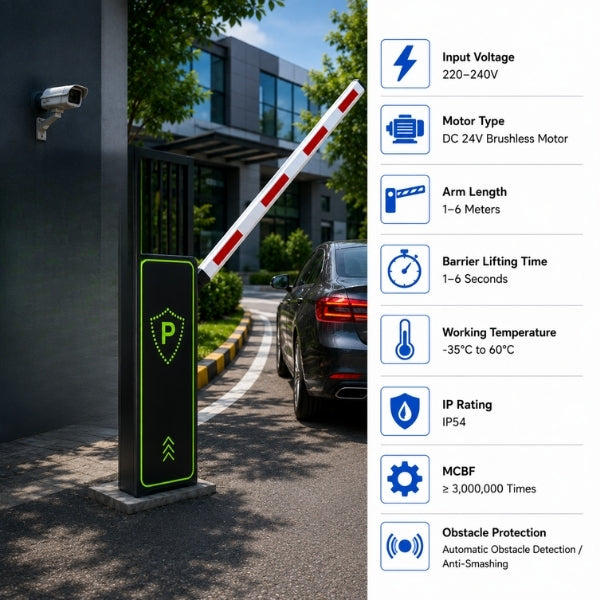

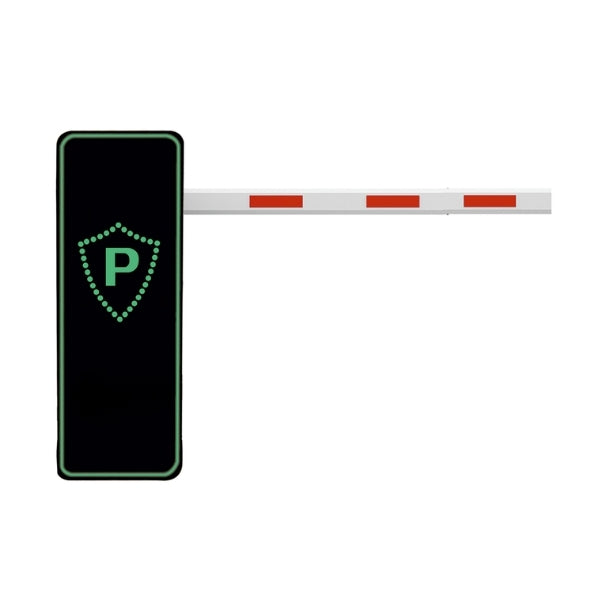

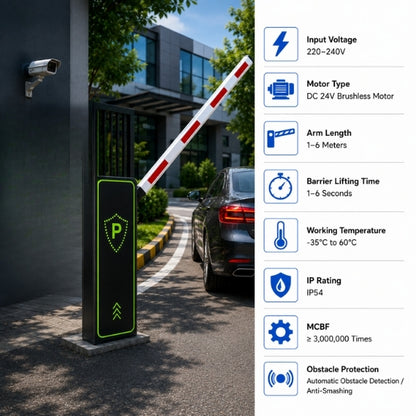

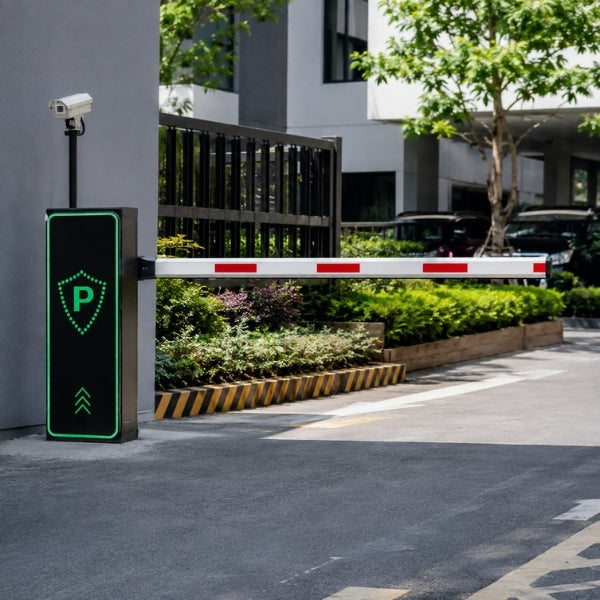

The SRK-BB200 Automatic Boom Barrier is a high-performance vehicle access control solution designed for managing wide entrances of up to 6 meters. It is suitable for parking lots, private access points, industrial areas, commercial facilities, and public spaces. The MB200 combines a 24V DC brushless motor with encoder, an embedded programmable controller, and smooth variable-speed operation for reliable and efficient barrier control.

The BB200 features an integrated movement mechanism that combines the frame, reducer, and transmission system to reduce vibration and improve operating accuracy. Its four-stage gear transmission is designed for durability and wear resistance. The barrier also supports wireless remote operation for raising, lowering, and stopping the boom.

For enhanced safety and flexibility, the BB200 provides automatic obstacle detection, configurable anti-smashing functionality, backup power support, adjustable opening/closing speed, and adjustable rise/fall angles. It can also support external or built-in ground sensing detection and optional traffic-light arrow guidance.

Features

• 24V DC brushless motor with encoder for smooth and reliable operation.
• Embedded programmable controller for flexible barrier control.
• Automatic obstacle detection with configurable anti-smashing functionality.
• 1–6 meter adjustable arm length for wide entrance applications.
• 1–6 second adjustable lifting time for flexible operating speed.
• Backup power support for continued operation during power outages.
• RS232/RS485 communication for integration with access-control systems.
• IP54 protection with durable aluminium-alloy boom and stainless-steel housing.

Advantages

• Wide entrance coverage: Supports boom arm lengths from 1 to 6 meters for different vehicle entry points.
• Smooth operation: Variable-speed 24V DC brushless technology enables controlled raising and lowering.
• Enhanced safety: Anti-smashing technology helps prevent the barrier from continuing operation when resistance is detected.
• Reliable construction: Integrated movement and four-stage gear transmission help reduce vibration and mechanical wear.

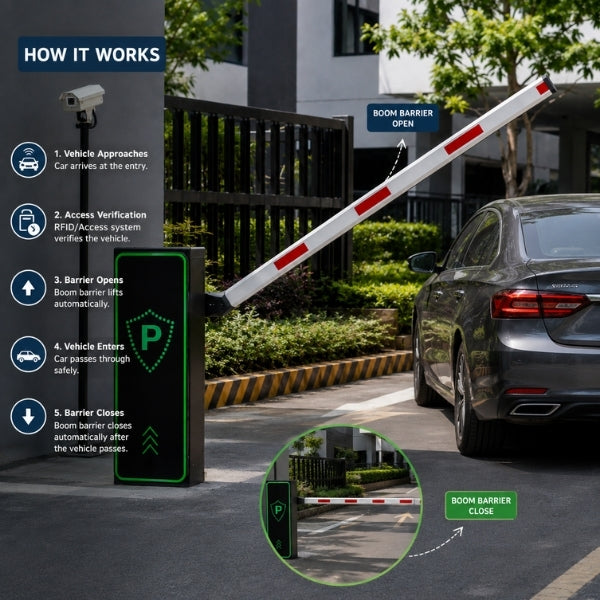

• Remote operation: Wireless remote control can be used to raise, lower, or stop the barrier.
• Power outage support: Expandable uninterrupted power supply allows the barrier to operate during power failures.
• Flexible installation: Supports ground sensing detection and optional traffic-light arrow guidance.
• Long service life: The manufacturer specifies an MCBF of ≥3,000,000 cycles.

Applications

• Parking Management: Automated vehicle entry and exit control.
• Industrial Areas: Secure access control for industrial premises.
• Private Access Points: Controlled vehicle access for gated locations.
• Commercial Facilities: Vehicle traffic management at offices and commercial properties.
• Public Spaces: Automated vehicle access management.
• Toll & Entry Points: Barrier control for vehicle lanes and restricted entrances.

Specifications
