Barcode Scanner Handy 5145
- Category:Barcode & QR Reader,Barcode Reader
- Model no. : 5145
- Scan Pattern : Single scan line
- Connectivity Type : Wired(Corded)
- Types of Opration : Laser
- Reading Range : 72 scan lines per second
Buy In Bulk ContactUs +91 9765629111

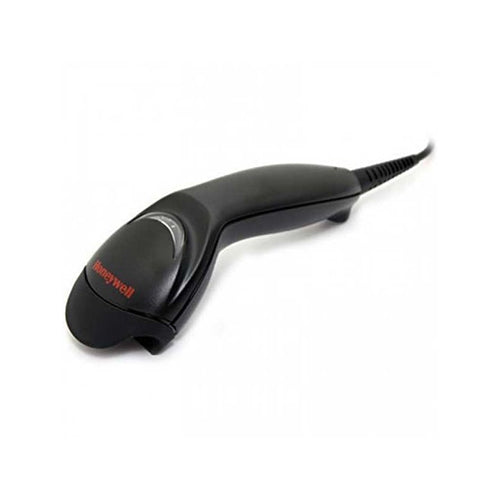

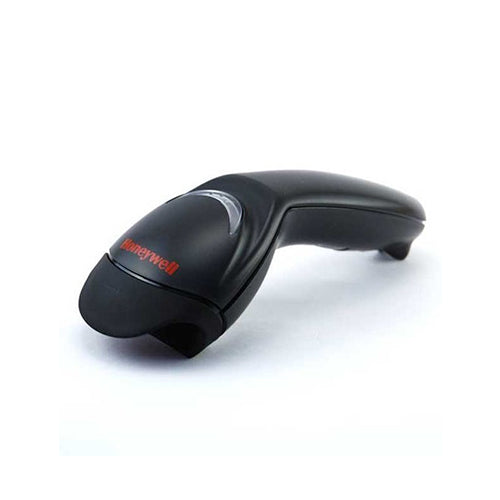

The Barcode Scanner Handy 5145 device is a single-line, handheld laser scanner with a compact form factor that's perfect for retail applications. With patented CodeGate technology, your team members can easily target the desired barcode and complete data transmission with a simple press of a button. That gives it a longer working range and a wider scan field than a typical Scanner. The width of the scan line grows as the scanner moves further away from the intended barcode, simplifying targeting. Its compact form factor and broad feature set make is simple to use in a variety of applications, including:
- Menu scanning

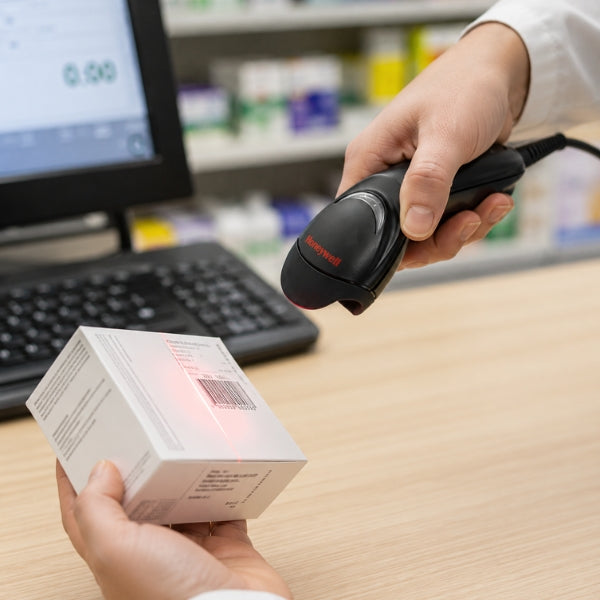

- Point-of-sale
- Document processing
- Inventory control
The Barcode Scanner Handy 5145 device is a single-line, handheld laser scanner with a compact form factor that's perfect for retail applications. With patented CodeGate technology, your team members can easily target the desired barcode and complete data transmission with a simple press of a button. That gives it a longer working range and a wider scan field than a typical Scanner. The width of the scan line grows as the scanner moves further away from the intended barcode, simplifying targeting. Its compact form factor and broad feature set make is simple to use in a variety of applications, including:
- Menu scanning
- Point-of-sale
- Document processing
- Inventory control
| MECHANICAL | |
| Dimensions (LxWxH) | 169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in) |
| Weight | 100 g (3.5 oz) |
| ELECTRICAL | |
| Input Voltage | 5 VDC + 0.25 V |
| Operating Power | 675 mW (125 mA @ 5 V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 468xx (RS485) |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.5 m (5 ft) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |

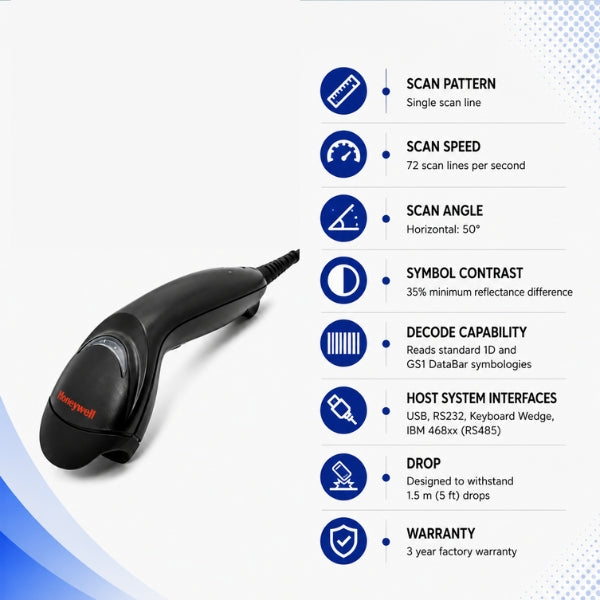

| SCAN PERFORMANCE | |
| Scan Pattern | Single scan line |
| Scan Speed | 72 scan lines per second |
| Scan Angle | Horizontal: 50° |
| Symbol Contrast | 35% minimum reflectance difference |
| Pitch, Skew | 68°, 52° |
| Decode Capability | Reads standard 1D and GS1 DataBar symbologies |
| Warranty | 3 year factory warranty |
