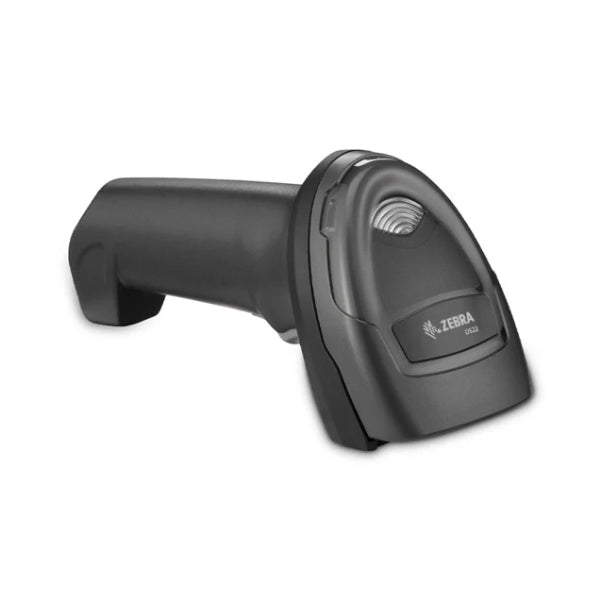

DS2278 Barcode Scanner
- Category:Barcode & QR Reader,Barcode Reader
- Model no. : DS2278
- Scanning Type : Area Imager
- Connectivity Type : Wireless
- Type of Opration : Laser
- Reading Range : 30 inch / sec
Buy In Bulk ContactUs +91 9765629111
DS2278 Barcode Scanner have made their way to your Point of Sale (POS), appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touch point in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278.
In addition to providing best-in-class scanning functionality, the DS2200 Series is easy to deploy, easy to use and easy to manage. The DS2200 Series is pre-configured and ready to use right out of the box. Workers get best-in-class first-time, every-time scanning with true point-and-shoot simplicity. When it comes to management, our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs. The DS2200 Series — delivering the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
DS2278 Barcode Scanner have made their way to your Point of Sale (POS), appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touch point in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278.
In addition to providing best-in-class scanning functionality, the DS2200 Series is easy to deploy, easy to use and easy to manage. The DS2200 Series is pre-configured and ready to use right out of the box. Workers get best-in-class first-time, every-time scanning with true point-and-shoot simplicity. When it comes to management, our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs. The DS2200 Series — delivering the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

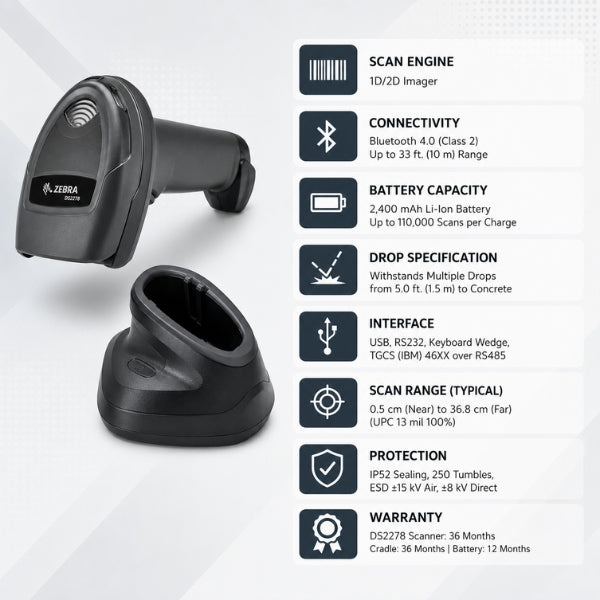

| Physical Characteristics | |
| Dimensions | Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D |
| Weight | Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports more than 90 international keyboards |
| User Indicators | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume) |
| Performance Characteristics | |
| Motion Tolerance (Handheld) | Up to 5 in./13 cm. per second for 13 mil UPC |
| Swipe Speed (Hands-Free) | Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Illumination | (2) 645nm Super-Red LEDs |
| Imager Field of View | 32.8° H x 24.8° V Nominal |
| Image Sensor | 640 x 480 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 65°; +/- 65°; 0-360° |
| Minimum Element Resolution | Code 39 – 4.0 mil; Code 128 – 4.0 mil; Data Matrix – 6.0 mil; QR Code – 6.7 mil |
| User environment | |
| Operating Temperature | DS2208/DS2278
Imagers: 32.0° to 122.0° F/0.0° to 50.0° C Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature | -40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1 |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,600 Lux |
| Radio specifications | |
| Bluetooth Radio | Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps |
| Battery | |
| Battery Capacity/ Battery Type | 2,400 mAh Li-Ion Battery |
| Scans Per Battery Charge2 | 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute |
| Operating Time Per Full Charge2 | 84.0 Hours |
| Charge Time (from Empty) | 14 Hour Shift Hours / Full Charge Hours |
| Standard USB | 14 Hour Shift Hours: 4 Full Charge Hours: 17 |
| BC1.2 USB | 14 Hour Shift Hours: 1 Full Charge Hours: 5 |
| External 5V Source | 14 Hour Shift Hours: 1 Full Charge Hours: 5 |
| Micro USB | 14 Hour Shift Hours: 1 Full Charge Hours: 7 |
| BC1.2 Micro USB | 14 Hour Shift Hours: 1 Full Charge Hours: 4 |
| Regulatory | |
| Electrical Safety | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07 |
| Environmental | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current Emissions | EN 61000-3-2 |
| Voltage Fluctuation and Flicker | EN 61000-3-3 |
| Radio Frequency Devices | 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus | ICES-003 Issue 6, Class B |
| Cordless accessories | |

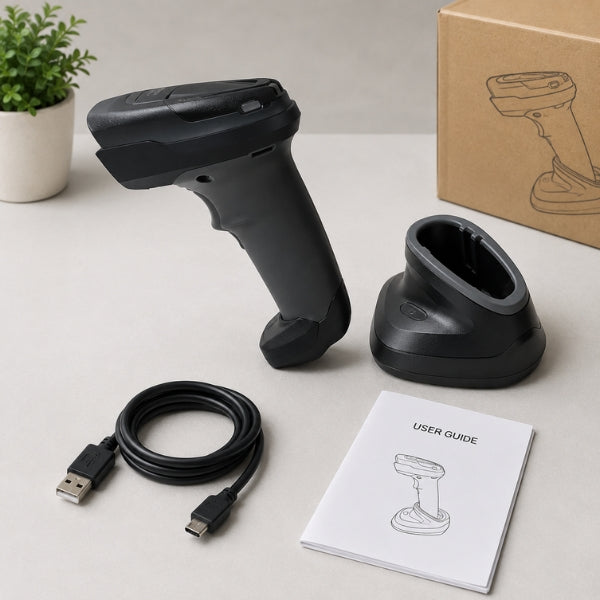

| CR2278 Presentation Cradle, Spare Battery, Micro USB Cable | |
| Decode capabilities3 | |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| Warranty | |
| Subject to the terms of Zebra’s hardware warranty statement, the DS2200 Series is warranted against defects in workmanship and materials for the following period from the date of shipment: DS2208 Corded Scanner: Sixty (60) months; DS2278 Cordless Scanner: Thirty-six (36) months; CR2278 Presentation Cradle: Thirty-six (36) months; Battery: Twelve (12) months. For the complete Zebra hardware product warranty statement, go to: http://www.zebra.com/warranty | |
| Recommended services | |
| Zebra OneCare Select; Zebra OneCare Essential | |
| Utilities and management | |
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/scannersdkforwindows |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
| Decode ranges (Typical)4 | |
| Code 39 | Resolution: 5 mil
Near: .2in./.5cm Far: 6.0 in/15.2 cm. |
| Code 128 | Resolution: 5 mil
Near: .6in./1.5 cm. Far: 4.0 in./10.1 cm |
| PDF417 | Resolution: 6.7 mil
Near: .8 in./2.0 cm Far: 5.7 in/14.5 cm |
| UPC | Resolution: 13 mil (100%)
Near: .5 in./.1.3 cm Far: 14.5 in./36.8 cm. |
| Data Matrix | Resolution: 10 mil
Near: .3in./.8 cm. Far: 6.2 in./15.7 cm |
| QR | Resolution: 20 mil
Near: .0 in./.0cm Far: 11 in./27.9 cm. |
