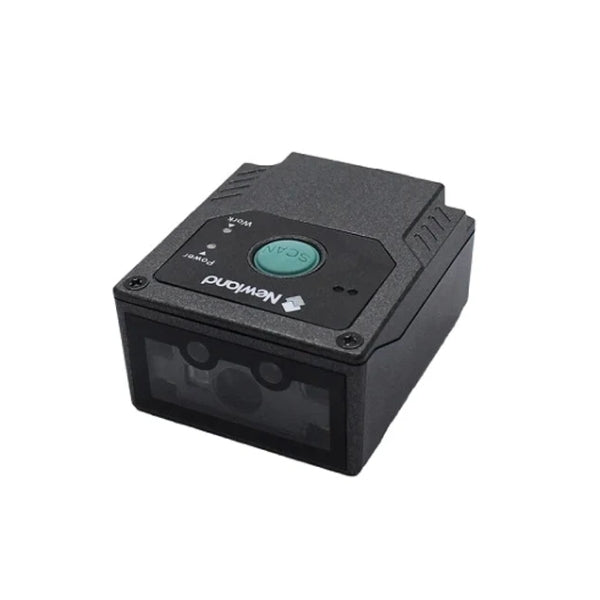

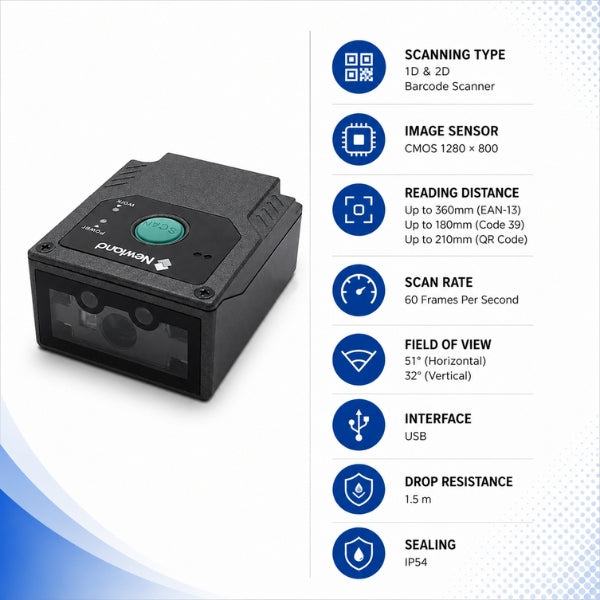

The new FM430 Barcode is Newland’s most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It’s equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease. On top of that, its programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.
The new FM430 Barcode is Newland’s most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It’s equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease. On top of that, its programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.
| Processor |
1GHz,X1500 |
|
| Image Sensor |
CMOS 1280 * 800 |
|
| Illumination |
White LED |
|
| Aiming |
Laser diode or green LED |
|
| Depth of Field EAN13 (13mil) |
55-360mm |
|
| Depth of Field CODE 39 (5mil) |
70-180mm |
|
| Depth of Field PDF417 (6.67mil) |
55-160mm |
|
| Depth of Field Data Matrix (10mil) |
50-170mm |
|
| Depth of Field QR (15mil) |
40-210mm |
|
| Minimal Print Contrast |
0.25 |
|
| Scan Angle Roll |
360° |
|
| Scan Angle Pitch |
±55° |
|
| Scan Angle Skew |
±55° |
|
| Field of View Horizontal |
51° |
|
| Field of View Vertical |
32° |
|
| Scan Modes |
Sense mode, Continuous mode, Level mode, Pulse mode |
|
| Scan Rate |
60 frames per second |
|
|
| 1D |
EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar,UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25,COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code93, Code 49, Code 16K, etc. |
|
| 2D |
PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode,Micro QR, Micro PDF417, GM , Code One, etc. |
|
|
| Dimensions (mm) |
41.5(W)×49.5(D)×24.3(H)mm |
|
| Weight |
75g |
|
| Material |
PC,ABS |
|
| Interfaces |
RS-232, USB |
|
| Notifications |
Beep, LED indicator |
|
| Input Voltage |
5VDC±5% |
|
| Current @ 5VDC Operating |
276.8mA (typical), 322.7mA (max.) |
|
| Current @ 5VDC Standby |
83.3mA |
|
| Power Supply Input |
DC5V, 1.5A |
|
| Power Supply Output |
AC100~240V, 50~60Hz |
|
|
| Operating Temperature |
-20℃ to 60℃ (-4°F to 140°F) |
|
| Storage Temperature |
-40℃ to 70℃ (-40°F to 158°F) |
|
| Humidity |
5%~95% (non-condensing) |
|
| Electro Static Discharge (ESD) |
±14 kV (air discharge), ±8 kV (direct discharge) |
|
| Drop |
1.5m |
|
| Sealing |
IP54 |
|
|
| Optional |
RS232 Cable,Adapter |
|
| Standard |
USB Cable |
|
|
| Certifications |
FCC Part15 Class B, CE EMC Class B, RoHS, IEC60825, IEC62471, KC |
|
