As the first megapixel scanner on the market, the FR4080 Koi II reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time. With user friendliness being at the forefront of POS systems, the Koi II features soft illumination with a 10-degree tilt that insures comfort for both employees and customers. Combined with its superior performance and level of comfort, the FR4080 Koi II is the perfect addition to any POS system.
It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.
The IR sensor in the FR4080 Koi II enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.
As the first megapixel scanner on the market, the FR4080 Koi II reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time. With user friendliness being at the forefront of POS systems, the Koi II features soft illumination with a 10-degree tilt that insures comfort for both employees and customers. Combined with its superior performance and level of comfort, the FR4080 Koi II is the perfect addition to any POS system.
It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.
The IR sensor in the FR4080 Koi II enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.

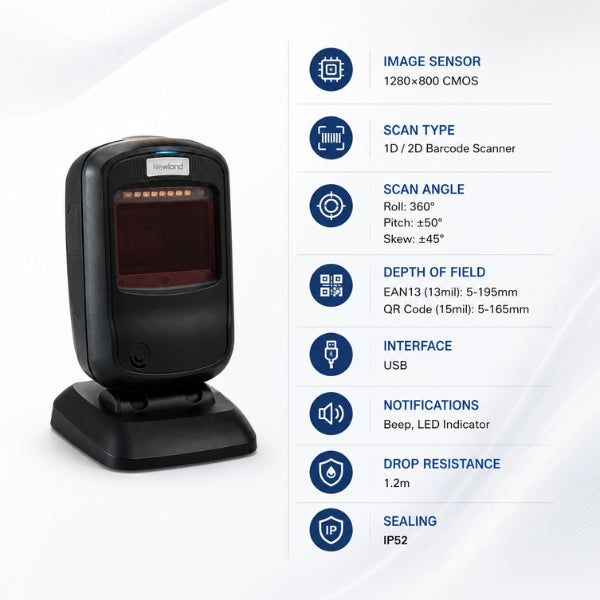

| Image Sensor |
1280×800 CMOS |
|
| Illumination |
White LED |
|
| Depth of Field EAN13 (13mil) |
5-195mm |
|
| Depth of Field QR (15mil) |
5-165mm |
|
| Minimal Print Contrast |
25% |
|
| Scan Angle Roll |
360° |
|
| Scan Angle Pitch |
±50° |
|
| Scan Angle Skew |
±45° |
|
| Field of View Horizontal |
51° |
|
| Field of View Vertical |
32° |
|
| Motion Tolerance |
2.5m/s |
|
|
| 1D |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |
|
| 2D |
PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. |
|
|
| Dimensions (mm) |
83(W)x81(D)x148(H)mm |
|
| Weight |
293g |
|
| Interfaces |
RS-232, USB |
|
| Notifications |
Beep, LED indicator |
|
| Input Voltage |
5VDC±5% |
|
| Current @ 5VDC Operating |
219mA (typical) |
|
| Power Consumption |
1041mW (typical) |
|
|
| Operating Temperature |
-20°C to 60°C |
|
| Storage Temperature |
-40°C to 70°C |
|
| Humidity |
5% to 95% (non-condensing) |
|
| Electro Static Discharge (ESD) |
±14 kV (air discharge), ±8 kV (direct discharge) |
|
| Drop |
1.2m |
|
| Sealing |
IP52 |
|
|
| Certifications |
FCC Part15 Class B, CE EMC Class B |
|
