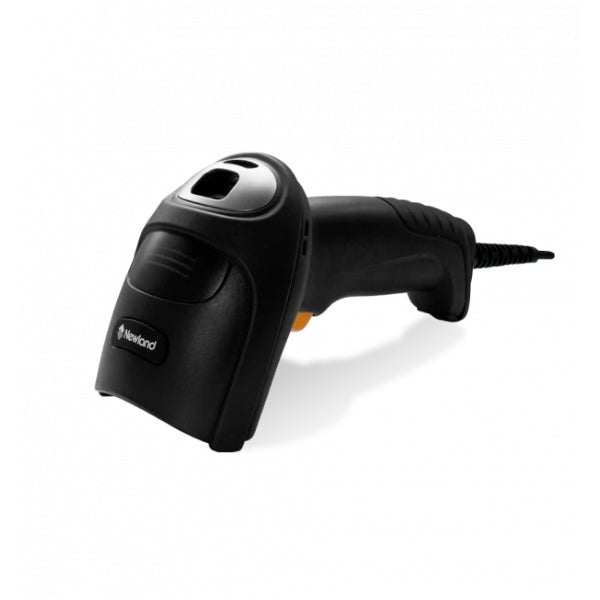

HR52 Bonito Corded

Available:In Stock
  • Model no. : HR52
  • Interfaces : RS-232, USB
  • Reading Range : 50cm/s
  • Image Sensor : 1280x800 CMOS


Buy In Bulk ContactUs +91 9765629111

X
Rs. 0.00

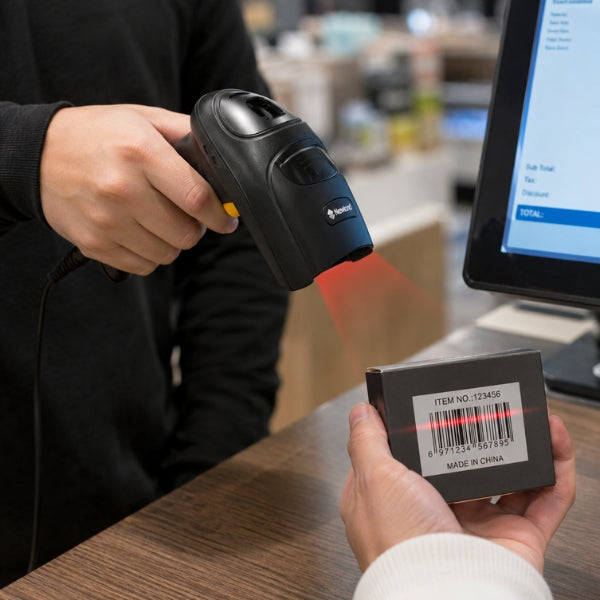

Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.



Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.



Performance
Image Sensor 1280x800 CMOS
Illumination White LED
Aiming 650nm laser diode
Depth of Field EAN 13 (13mil) 35mm-280mm
Depth of Field Code 39 (5mil) 70mm-210mm
Depth of Field PDF417 (6.67mil) 50mm-160mm
Depth of Field Data Matrix (10mil) 40mm-170mm
Depth of Field QR (15mil) 20mm-230mm
Minimal Print Contrast 20%
Scan Angle Roll 360°
Scan Angle Pitch ±55°
Scan Angle Skew ±55°
Field of View Horizontal 42°
Field of View Vertical 28°
Motion Tolerance 50cm/s
Data Capture
1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 25, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode.

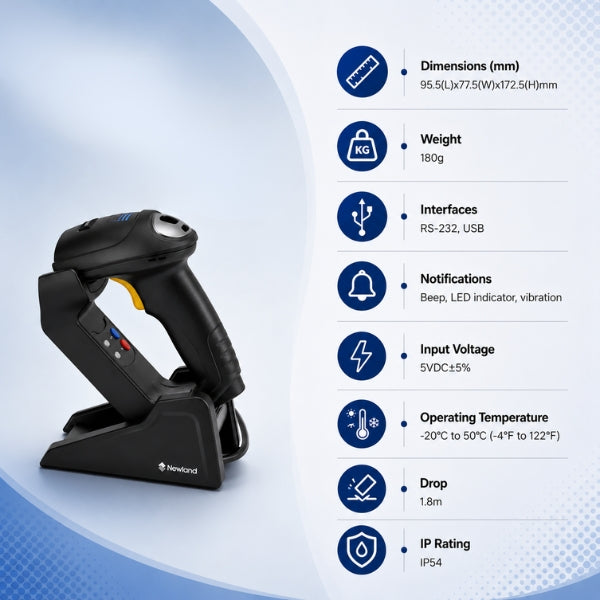

Physical
Dimensions (mm) 95.5(L)x77.5(W)x172.5(H)mm
Weight 180g
Interfaces RS-232, USB
Notifications Beep, LED indicator, vibration
Input Voltage 5VDC±5%
Current @ 5VDC Operating 272mA (typical)
Current @ 5VDC Standby 81mA
Power Consumption 1308mW
Environmental
Operating Temperature -20℃ to 50℃ (-4°F to 122°F)
Storage Temperature -40℃ to 70℃ (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)
Drop 1.8m
IP Rating IP54
