SRK-UHF RFID 9640 Wet Inlay|860-960MHz ISO 18000-6C|
- Model Name : ID-9640 Wet Inlay
- Weight : 1g / pc
- Operational frequency : Global 860-960MHz
- Read Range : Up to 10 m / 32.81 ft
- Dimensions : 98 x 12 mm / 3.86” x 0.47”
(Tax & Fright Extra)
Buy In Bulk ContactUs +91 8411958300

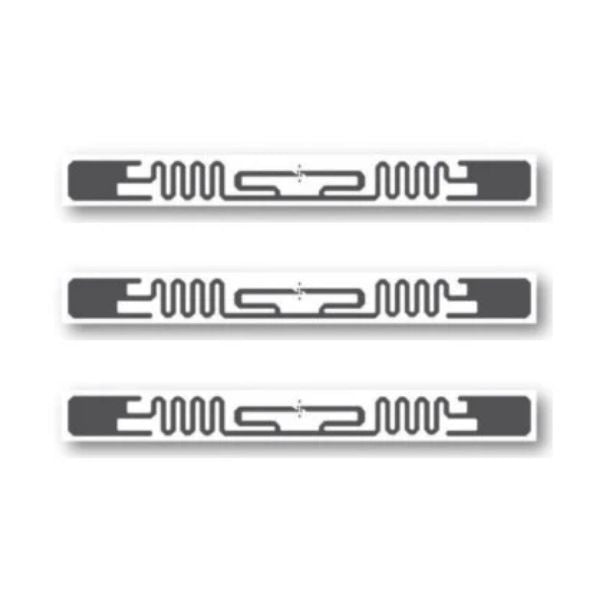

Wet Inlay 9640 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies. The dry inlay is typically supplied on a substrate or carrier.If coating with adhesive, it is called a wet inlay.
Applications :-
- Asset tracking
- Inventory Tracking
- Corrugate cases
- Pallet cards
- Apparel hang tags
- Baggage tags
- Asset management
- File folder labels
- Shipping labels
Wet Inlay 9640 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies. The dry inlay is typically supplied on a substrate or carrier.If coating with adhesive, it is called a wet inlay.
Applications :-
- Asset tracking
- Inventory Tracking
- Corrugate cases
- Pallet cards
- Apparel hang tags
- Baggage tags
- Asset management
- File folder labels
- Shipping labels
| Mechanical Specification :- | |
| Substrate | PET |
| Liner | Glassine Liner |
| Weight | 1g / pc |
| Delivery format | 5000 pcs on reel |
| Pitch on reel | 15.875 mm / 0.63” |
| Reel core inner diameter | 76 mm / 3” |

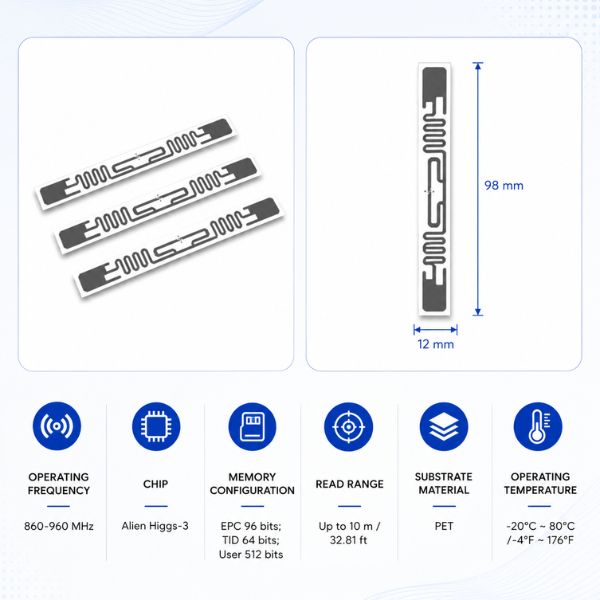

| Tag dimensions | 98 x 12 mm / 3.86” x 0.47” |
| Environmental Resistance | |
| Operating temperature | -20°C~80°C / -4°F~176°F |
| Ambient temperature | -20°C~80°C / -4°F~176°F |
| Storage condition | 2 year at +20°C / 50% RH |
| Expected lifetime | 2 years in normal operating conditions |
| Electrical Specification | |
| Device type | Class 1 Generation 2 passive
UHF RFID transponder |
| Air interface protocol | EPC Global Class1 Gen2
ISO 18000-6C |
| Operational frequency | Global 860-960MHz |
| IC type | Higgs 3(In addition to the
special requirements) |
| Memory configuration | EPC 96 bits; Unique TID 64 bits;
User Memory 512 bits |
| Read range | Up to 10 m / 32.81 ft |
