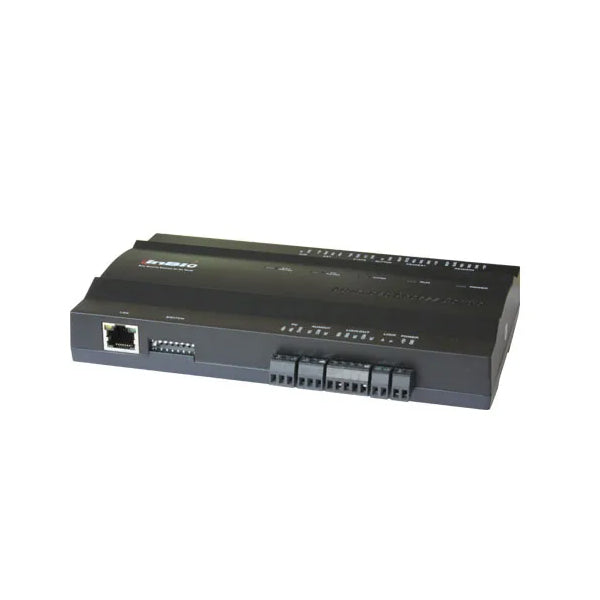

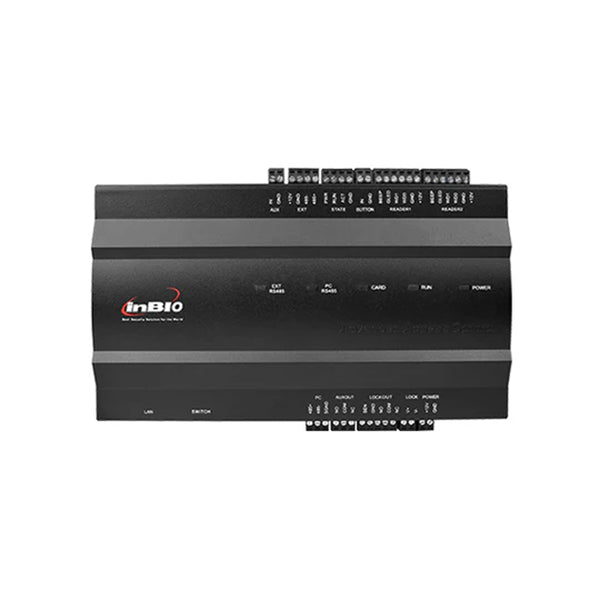

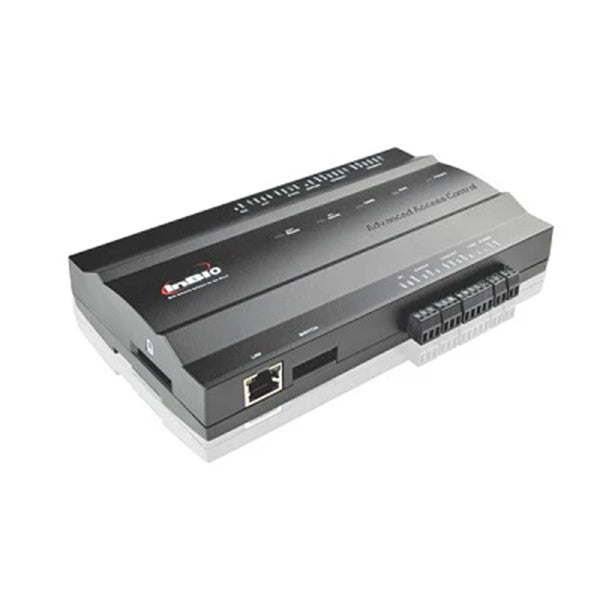

InBio 460 Access Control
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

InBio 460 Access Control

Available:In Stock
  • Numbers of Door Controller :- 4 Door
  • Card Capacity:- 30,000
  • Fingerprint Capacity:- 3000
  • Flash Memory :- 128MB


Buy In Bulk ContactUs +91 9765629111

X
Rs. 0.00

The INBIO460 is an IP-based Biometric Door Access Control Panel, supporting up to 3000 fingerprint templates, 30,000 badge users and stores up to 10,000 events and transactions. The InBio controllers can be easily installed on your network and support both TCP/IP and RS-485 communication.

The INBIO460 is an IP-based Biometric Door Access Control Panel, supporting up to 3000 fingerprint templates, 30,000 badge users and stores up to 10,000 events and transactions. The InBio controllers can be easily installed on your network and support both TCP/IP and RS-485 communication.

Number of Door Controller 4 Door
CPU 32bit MIPS CPU
RAM 32MB, Flash Memory : 128MB
Fingerprint Capacity 3000
Card Capacity 30,000
Event buffer 1,00,000

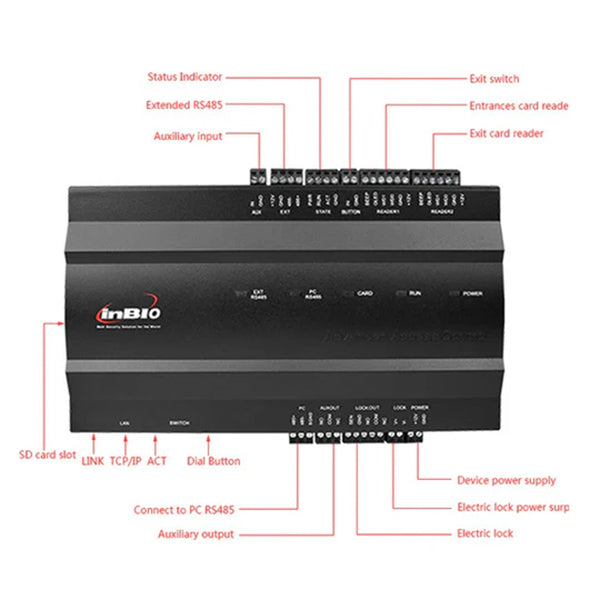

Number of inputs 12 (4 Exit device, 4 door status, 4 Aux input)
Number of Outputs 8 (4-form C Relay for Lock and 4-Form C Relay for Aux Outputs)
Power / Current 12V +5A for Controller, Rated Max 1A
Wiegand Reader Port 4ea (26/34 bit Wiegand,
4/8bit for PIN RS485)
Reader Port 1no. extended RS485 Port
Communication RS485 , TCP/IP
Baud Rate 38,400bps (recommended) / 9600bps,
19,200 bps , 57,600 bps (selectable)
Supports F12 (RS 485) Fingerprint Reader
