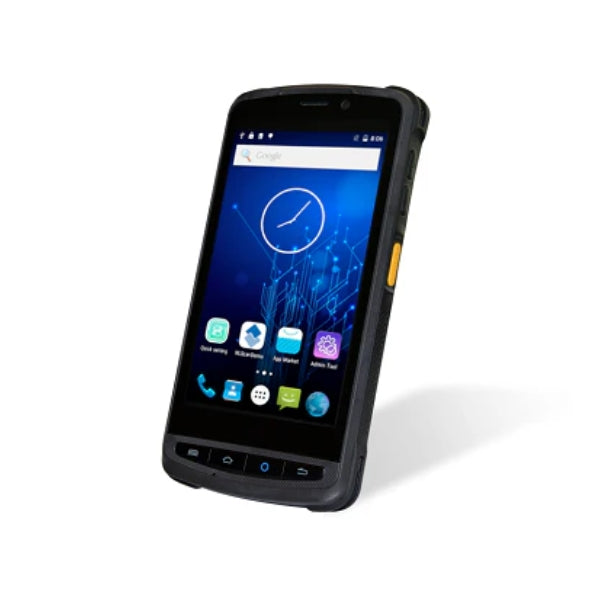

From the moment you take it out of the box, the MT90 Mobile Computer is easy to use. It was designed with an optimal form factor for a full touchscreen mobile computer with a barcode scanner. Its consumer-style design and Android operating system make the experience similar to picking up a personal mobile phone. This makes for intuitive use and a limited need for staff training.
The MT90 is a lightweight, well-balanced device that reduces stress and fatigue during extended work sessions. The ergonomically positioned side scan button provides the most comfort for either right or left handed operators. Equipped with a 4500 mAh battery that provides a battery life of up to 10 hours from a single charge.
The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 260g, it’s easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it by your side – ready to use – during all other activities.
From the moment you take it out of the box, the MT90 Mobile Computer is easy to use. It was designed with an optimal form factor for a full touchscreen mobile computer with a barcode scanner. Its consumer-style design and Android operating system make the experience similar to picking up a personal mobile phone. This makes for intuitive use and a limited need for staff training.
The MT90 is a lightweight, well-balanced device that reduces stress and fatigue during extended work sessions. The ergonomically positioned side scan button provides the most comfort for either right or left handed operators. Equipped with a 4500 mAh battery that provides a battery life of up to 10 hours from a single charge.
The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 260g, it’s easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it by your side – ready to use – during all other activities.
| Operating System |
Android 7.0 |
|
| Processor |
1.3GHz quad-core 64-bit processor |
|
| Memory RAM |
2GB |
|
| Memory Flash |
16GB |
|
| Memory Storage Expansion (Max.) |
Micro SD card (max. 32GB) |
|
| Image Sensor |
E2 640*480 |
|
| Illumination |
Red LED(625±10 nm) |
|
| Aiming |
Red LED(625±10 nm) |
|
| Depth of Field EAN13 (13mil) |
60-420mm |
|
| Depth of Field CODE 39 (5mil) |
102-205mm |
|
| Depth of Field PDF417 (6.67mil) |
90-173mm |
|
| Depth of Field Data Matrix (10mil) |
110-275mm |
|
| Depth of Field QR (15mil) |
40-230mm |
|
| Minimal Print Contrast |
0.25 |
|
| Scan Angle Roll |
360° |
|
| Field of View Horizontal |
44° |
|
| Field of View Vertical |
33° |
|
| Scan Modes |
Trigger,Sense |
|
| Scan Rate |
100 frames per second |
|
|
| 1D |
Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar. |
|
| 2D |
PDF417, QR Code, Data Matrix, Chinese Sensible Code, etc. |
|
|
| Dimensions (mm) |
155(L) × 78.5(W) × 20.5(H)mm |
|
| Weight |
265g (including battery) |
|
| Material |
PC |
|
| Display |
5” (1280×720) |
|
| Touch panel |
Capacitive touch screen |
|
| Keypad |
10 keys (side keys included) |
|
| Buttons |
Volume+,Volume-,Left Scan Key,Keypad(4 Keys), |
|
| Interfaces |
Micro USB |
|
| Battery Type |
3.8V, 4500mAh |
|
| Expected Battery Life |
10 hours |
|
| Expected Charge Time |
5 hours (charge via AC adapter) |
|
| Notifications |
Vibrator, speaker and multi-color LED |
|
| Power Supply Input |
DC5V, 2A |
|
| Power Supply Output |
AC100~240V, 50~60Hz |
|
| Audio |
Microphone / speaker |
|
| Audio Jack |
3.5mm earphone |
|
| Pogo Pin |
√ |
|
| Expansion Slot |
Micro SD card (max. 32GB) |
|
| Camera |
8 megapixels, auto focus, with LED flashlight |
|
| SIM |
1 SIM card,1 Micro SIM Card |
|
|
| Operating Temperature |
-20℃ to 55℃ (-4°F to 131°F） |
|
| Storage Temperature |
-30℃ to 70℃ (-22°F to 158°F) |
|
| Humidity |
5% to 95% (non-condensing) |
|
| Electro Static Discharge (ESD) |
±15 kV (air discharge), ±8 kV (direct discharge) |
|
| Drop |
1.5m |
|
| Sealing |
IP65 |
|
|
| WWAN Radio |
2G: GSM/GPRS/EDGE (850/900/1800/1900MHz) 3G: WCDMA (B1, B2, B5, B8),TD-SCDMA (B34, B39),CDMA2000 1X/ EV-DO Rev. A (BC0) 4G: TD-LTE (B38, B39, B40, B41),FDD-LTE (B1, B3, B7, B8, B20) |
|
| WLAN Radio |
IEEE 802.11 a/b/g/n, 2.4GHz and 5GHz |
|
| WPAN Radio |
Bluetooth 4.0 LE |
|
| RFID |
13.56MHz RFID ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693 |
|
| GPS |
GPS (AGPS), GLONASS |
|
|
| Optional |
Charging Cradle, Pistol Grip, Rubber Boot, Wrist Strap, Hand Strap. |
|
| Standard |
Battery, AC adapter,USB cable |
|
|
| Buckets |
Supported |
|
| SOTI |
Supported |
|
|
| Certifications |
CE RED,FCCID,RoHS,IEC6247,Laser safety(Class II) |
|
