NewLand HR2081-BT Handheld Scanner|640×480 CMOS| USB cable
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

NewLand HR2081-BT Handheld Scanner|640×480 CMOS| USB cable

Available:In Stock
  • Model Name : NewLand HR2081-BT Handheld Scanner
  • Weight: 167g
  • Sealing: IP42
  • Interface: USB
  • Connectivity: Cordless
  • Decode Capability: 1D, 2D, OCR
  • Dimension: 145×101×68mm


Rs. 3,381.84

(Tax & Fright Extra)

Buy In Bulk ContactUs +91 8411958300

X

 Newland HR2081-BT is CMOS Sensor Reader, this CPU-based scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen can read barcodes in papers, plastic cards, LCD. The scanner can connect different kinds of devices, Scanner can work via bluetooth or USB cable , very easy for bluetooth pairing . if you use the bar code reader via USB cable it's plug and play. it don't support square.

  • Durable Construction

The NLS-HR2081-BT Handheld Scanner, built into an IP42-sealed and drop resistant (1.5m) housing with no moving parts, fortifies itself inside and out.

  • Exceptional Battery Life

With 2200mAh battery, it will run a comfortable 12 hours of continuous use. The provided USB cable allows convenient charging.

  • Outstanding Performance

Equipped with the a outstanding CPU, this wireless handheld scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.

  • Reliable Wireless Communication

Adopting the latest Bluetooth 5.0 technology, the NLS-HR2081-BT Handheld Scanner is able to maintain a reliable wireless connection to transmit data. The communication distances up to 50m.



 Newland HR2081-BT is CMOS Sensor Reader, this CPU-based scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen can read barcodes in papers, plastic cards, LCD. The scanner can connect different kinds of devices, Scanner can work via bluetooth or USB cable , very easy for bluetooth pairing . if you use the bar code reader via USB cable it's plug and play. it don't support square.

  • Durable Construction

The NLS-HR2081-BT Handheld Scanner, built into an IP42-sealed and drop resistant (1.5m) housing with no moving parts, fortifies itself inside and out.

  • Exceptional Battery Life

With 2200mAh battery, it will run a comfortable 12 hours of continuous use. The provided USB cable allows convenient charging.

  • Outstanding Performance

Equipped with the a outstanding CPU, this wireless handheld scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.

  • Reliable Wireless Communication

Adopting the latest Bluetooth 5.0 technology, the NLS-HR2081-BT Handheld Scanner is able to maintain a reliable wireless connection to transmit data. The communication distances up to 50m.

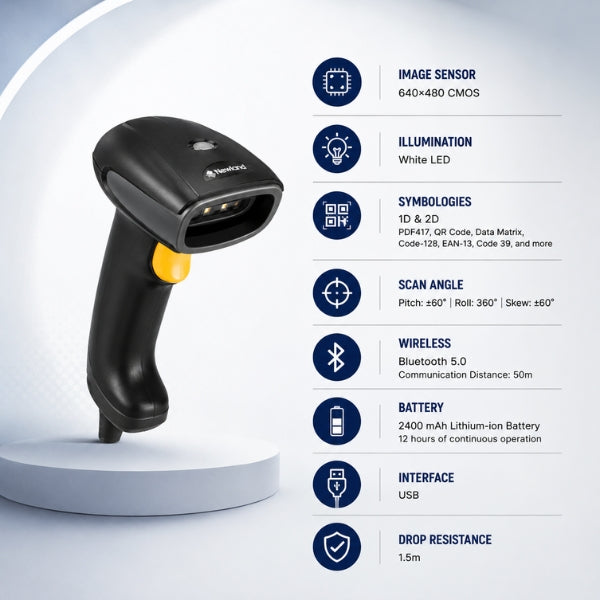

Performance

Image Sensor

640×480 CMOS

Illumination

White LED

Symbologies/1D/2D

PDF417, Micro PDF 417, QR Code, Data Matrix, Micro QR Code Aztec, Data Matrix
Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS)
Passport OCR

Resolution

≥3mil

Typical Depth of Field

EAN-13 -50mm-260mm (13mil)
QR Code- 30mm-170mm (15mil)
Code 39 - 50mm-115mm (5mil)
PDF 417 - 50mm-120mm (6.67mil)
Data Matrix - 35mm-125mm (10mil)

Scan Angle

Pitch - ±60°
Roll - 360°
Skew - ±60°

Min. Symbol Contrast

20%

Field of View

Horizontal 45°, Vertical 34°

Aiming

Red LED (625nm)

Wireless

Communication Modes

Synchronous mode, automatic batch mode and manual batch mode

Radio Technology

Bluetooth 5.0

Communication Distance(direct line of sight in open air)

50m

Battery

2400 mAh lithium-ion battery

Expected Charge Time

5.5 hours

Expected Battery Life

12 hours of continuous operation (scan once per 6 seconds)

Memory Capacity

≥15000 pieces Code 128 (20 byte of each Code 128)

Physical

Dimensions (L×W×H)

145×101×68mm

Weight

167g

Charge Voltage

5VDC±5%

Interfaces

USB

Notification

Beep, LED indicator, vibration

Environmental

Operating Temperature

-20°C to 60°C (-4°F to 140°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

5% ~ 95% (non-condensing)

ESD

±15 KV (air discharge); ±8 KV (direct discharge)

Drop

1.5m

Sealing

IP42

Charge Temperature

0°C to 45°C (32°F to 113°F)
