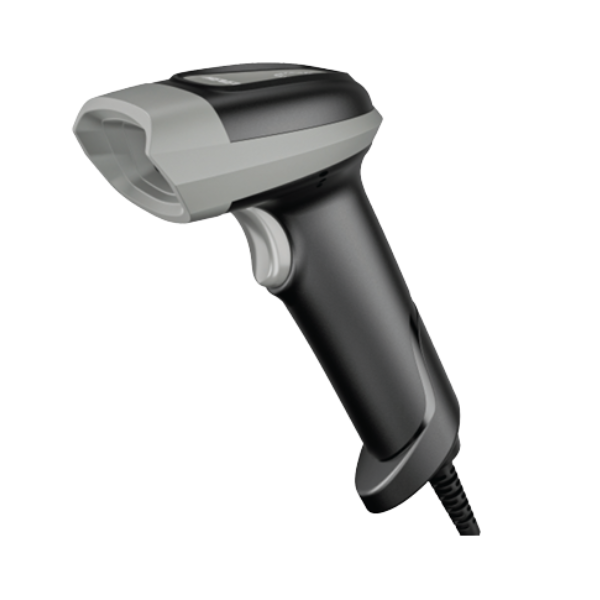

The RUGTEK LS-3002 2D Wired Barcode Scanner is a reliable and versatile scanning solution designed for retail stores, hypermarkets, warehouses, POS counters, and other business environments. It supports both 1D and 2D barcode scanning, making it suitable for product identification, billing, inventory management, and QR code scanning.
Equipped with a CMOS image sensor and 640 × 480 pixel resolution, the RUGTEK LS-3002 delivers fast and accurate barcode capture. It supports printed barcodes as well as QR codes displayed on mobile phone screens, making it suitable for modern retail and digital applications.
The scanner supports both handheld and hands-free scanning modes, allowing users to select the scanning method according to their workflow. Its ergonomic design provides comfortable operation, while the wide scanning angle makes barcode positioning easier.
With support for USB Keyboard, USB Virtual Serial Port, and RS-232, the RUGTEK LS-3002 can be easily connected to POS systems, computers, and other compatible devices. Its wired transmission provides a stable connection for continuous scanning operations.
The RUGTEK LS-3002 also features LED indicators and a buzzer for clear scanning feedback. Its high-temperature-resistant cable, modular construction, and 2-meter drop resistance provide durability for everyday commercial environments.
The RUGTEK LS-3002 2D Wired Barcode Scanner is an excellent choice for businesses looking for a fast, reliable, durable, and easy-to-integrate barcode scanning solution. With 1D/2D scanning, mobile QR code support, multiple interfaces, and handheld or hands-free operation, it helps improve scanning efficiency and streamline everyday business operations.
| Brand | RUGTEK |
| Model | LS-3002 |
| Product Type | 2D Wired Barcode Scanner |
| Operating System | Windows / iOS / Android / Google Chrome |
| Image Sensor | CMOS |
| Image Resolution | 640 × 480 Pixels |
| Light Source | Aiming: 625 nm Red LED / Illumination: 4000K White LED |
| Scan Mode | Handheld (Manual) / Hands-Free (Automatic) |
| Scan Rate | 300 Scans/Second |
| Scan Accuracy | ≥ 4mil @ Code39 |
| Print Contrast | ≥ 20% |
| Visual Indicator | Red and Blue LED Light, Buzzer |
| Interfaces | USB Keyboard, USB Virtual Serial Port, RS-232 |
| Scan Angle | Left/Right: ±55°, Front/Rear: ±55°, Rotate: 360° |
| Roll / Pitch / Yaw | Roll 65°, Pitch 35°, Yaw 45° |
| Field of View | 32° Horizontal, 24° Vertical |
| Transmission Mode | Wired Transmission |
| Dimensions | 179 × 68 × 94 mm |
| Weight | 203 g with Cable |
| Cable | Standard 1.8 m Straight Cable |
| Input Voltage | 5VDC ±5% |
| Working Current | 150mA |
| Scan Distance | 20–350 mm @ EAN 13mil; 5–170 mm @ QR 20mil |
| Operating Temperature | -20°C to +60°C |
| Working Humidity | 5% to 95% RH, Non-Condensing |
| Storage Temperature | -40°C to +70°C |
| Electrostatic Protection | ±8 kV Direct Discharge |
| Ambient Brightness | 0–100,000 Lux |
| Drop Resistance | 2 m |
| Stand | Optional |
| Safety Regulations | CE, RoHS, EN62368-1, FCC Part 15 Class B |
| Barcode Capability | 1D / 2D |
