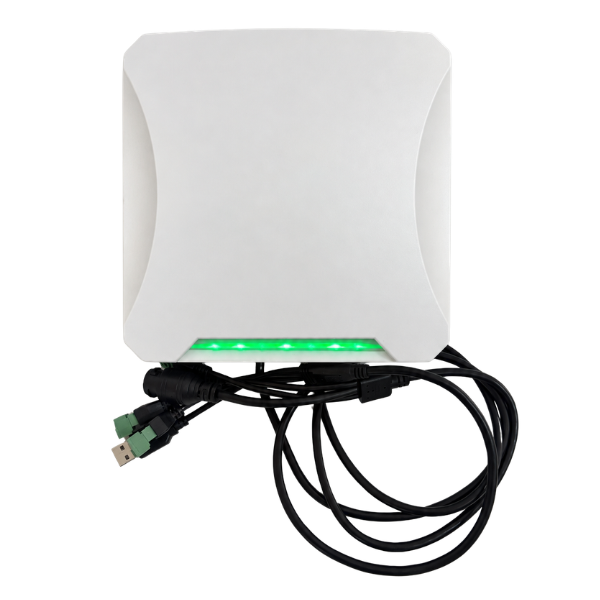

The SRK MU06 UHF RFID Reader is a reliable mid-range RFID solution designed for vehicle access control, parking management, warehouses, logistics, industrial automation, and fixed-point asset tracking. With an integrated 9 dBi linear-polarized antenna, the CR06 provides a reading distance of up to 6 meters, making it suitable for applications where RFID tags need to be detected without direct contact.
The CR06 operates in the 865–867 MHz European UHF frequency range and supports ISO18000-6C / EPC Gen2 tags. Its multi-tag reading capability allows multiple RFID tags to be identified within the reading zone, making it suitable for vehicle, pallet, carton, trolley, and asset identification applications.
The reader supports multiple communication interfaces, including RS232, RS485, Wiegand 26, Wiegand 34, and TCP/IP through the available RJ45 interface, providing flexible integration with access-control systems, parking systems, computers, and industrial automation equipment.
The MORX CR06 supports automatic, trigger, and interactive operating modes, while adjustable RF power from 0–30 dBm allows the reader to be configured according to the application environment. Its IP66-rated housing provides protection for installations in demanding environments.
The MORX CR06 UHF RFID Reader provides a practical solution for organizations requiring mid-range, multi-tag UHF RFID identification. With its integrated antenna, multiple communication interfaces, adjustable RF power, and IP66-rated design, it can be integrated into parking, vehicle access, warehouse, logistics, and industrial RFID systems.
| Model | SRK MU06 |
| Product Type | Mid-Range Integrated UHF RFID Reader |
| Working Frequency | 865–867 MHz |
| Reading Distance | Up to 6 m |
| Tag Protocol | ISO18000-6C / EPC Gen2 |
| Group Reading | >50 Tags |
| RF Power | 0–30 dBm, Software Adjustable |
| Antenna | Built-in 9 dBi Linear Polarized Antenna |
| Operating Mode | Automatic / Trigger / Interactive |
| Communication Interfaces | RS232, RS485, Wiegand 26, Wiegand 34, TCP/IP |
| Optional Connectivity | RJ45, Wi-Fi, GPRS |
| Power Supply | DC 12V / 2A |
| Power Consumption | 1W |
| Identification Indicator | Buzzer / LED Flash |
| Operating Temperature | -20°C to +70°C |
| Working Humidity | 20%–95%, Non-Condensing |
| Storage Temperature | -40°C to +125°C |
| Protection Rating | IP66 |
| Dimensions | 180 × 180 × 47 mm |
| Net Weight | 900 g |
