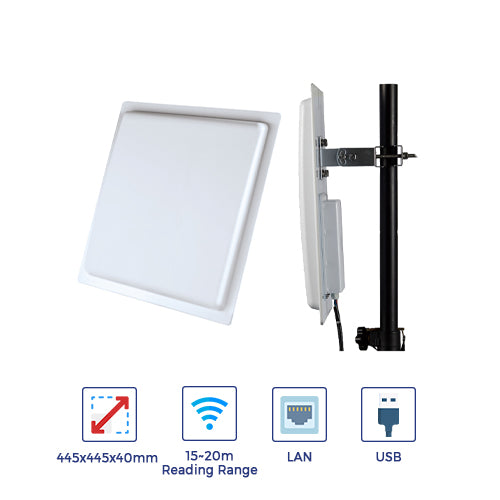

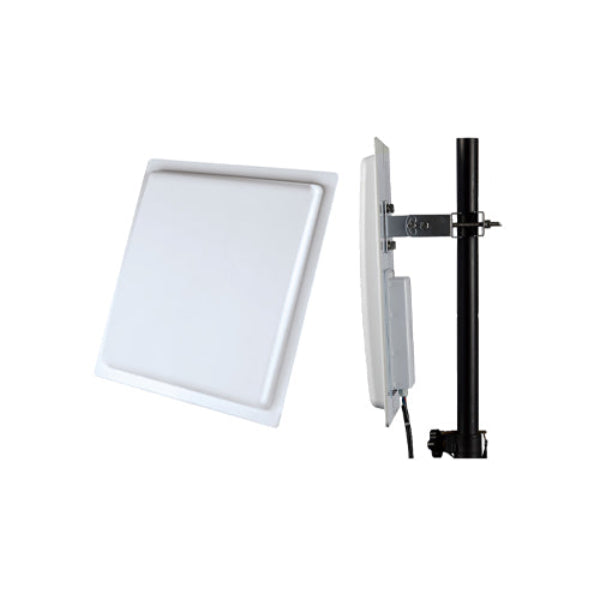

SRK- SYLD15L UHF RFID Reader Self-intellectual property Design based on Impinj R2000| with excellent anti-collision performance Support ISO18000-6B, ISO18000-6C (EPC C1G2) protocol tag 902~928MHz frequency band(frequency customization optional) FHSS or Fix Frequency transmission RF output power up to 30dbm(adjustable) 12dbi antenna optional with effect distance up to 15m* Support auto-running, interactive and trigger- activating work mode Low power dissipation with single +12DC power supply Support RJ45, Rs232, RS485, USB, Wiegand interface.
|
Model |
SRK- SYLD15L |
|
Physical Parameter |
|
|
Dimension |

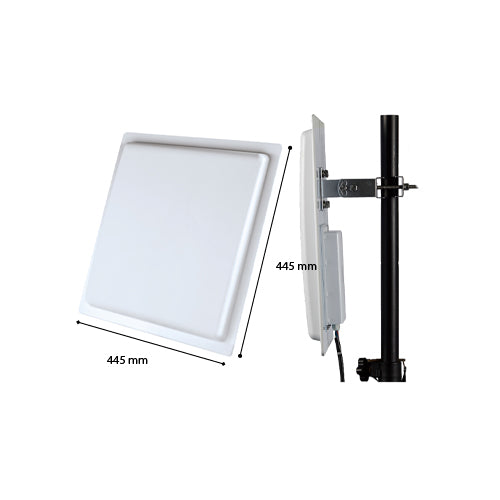

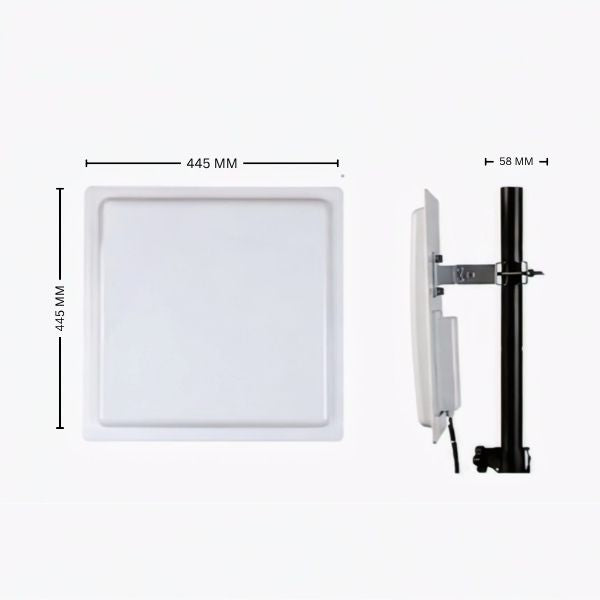

445(L) x 445(W) x 40(H) mm (Exclude bracket and external wires) |
|
Weight |
4.5kg (include package) |
|
4.5kg (include package) |
ABS+PC |
|
UHF RFID Performance Parameter |
|
|
Frequency |
865-868MHz/902-928MHz |
|
Protocol |
EPC C1 GEN2 /ISO18000-6C |
|
Built-in antenna |
12dBi line polarization |
|
Power |
30dBm (adjustable by 1dBm step with demo software) |
|
R/W range |

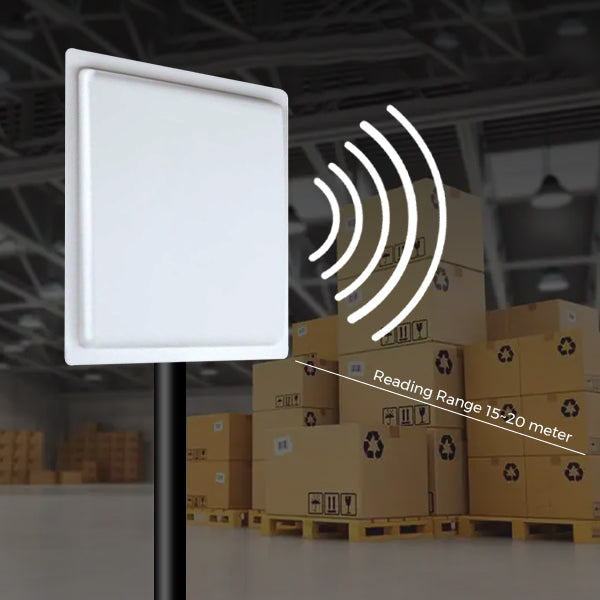

Read range 15~20m, write range >50cm (test tag: AZ9662Inlay) |
|
Electric Parameter |
|
|
Communication interface |

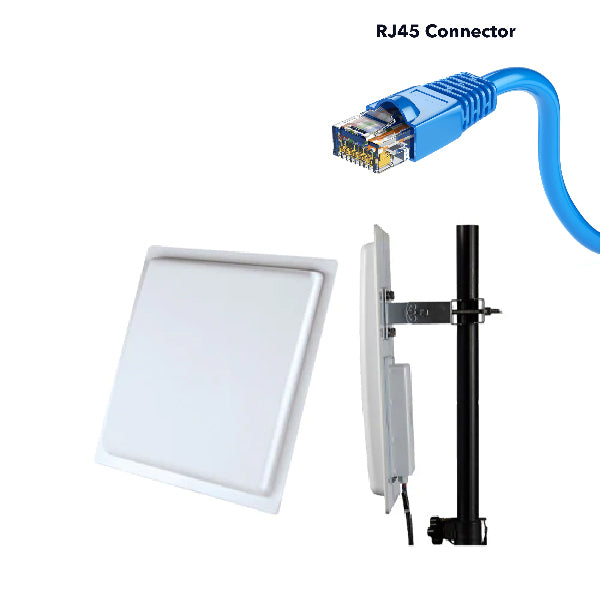

RJ45, RS232, RS485, USB, Wiegand, Trigger |
|
Serial rate |
9600~115200bps |
|
RJ45 rate |
10Mbps |
|
GPIO |
1 relay output, 1 trigger input |
|
Reading Indicator |
Buzzer |
|
Power consumption |
~1W |
|
Working |
220V AC input, +9V/3A adaptor DC output |
|
|
|
|
Standard |
Bracket, Power supply |
|
Index of Protecon |
IP65
|
