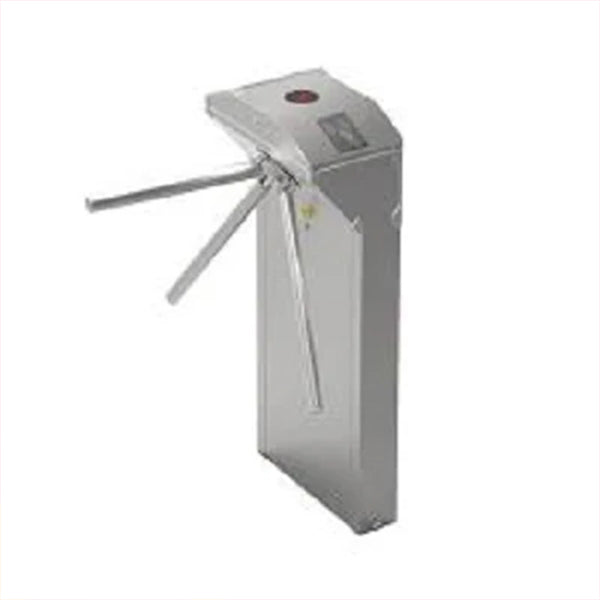

Tripod Turnstile TS1000 is a single-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes TS1000 highly durable. TS1000 is also surprisingly compact and designed to operate in small workspaces.
| Basic | Type | Vertical Tripod |
| Arm Length | 50cm | |
| Max tolerance of Arms | 80 Kg | |
| Angle per rotation | 120o | |
| Operation Type | Oneway – Bidirectional | |
| Turnstile | Flow Rate | 15 – 20 passages/minute |
| Input control signal | Dry Contact | |
| Ingress protection Degree | IP54 | |
| Opening Duration | 5s – 60s | |
| Hardware &Interface | Primary controller (Inbuilt) | |
| CPU | 32 bit Microprocessor | |
| Opening Signal Input | Yes | |
| Emergency Switch Input | Yes | |
| Direction Indicator Output | Yes | |
| Passing Indicator Output | Yes | |
| Drop Arm Electromagnet Output | Yes | |
| Secondary Controller | NO | |
| Optional Interface | Any Standalone access controller system | Eg. X990, IFACE, SC403,X7,SF101,F702 etc. |
| General Specification | Power Supply | |
| SMPS – Input | AC 220V / 110V, 50Hz / 60Hz | |
| SMPS – output | DC +24V, 5A; +12V, 3A | |
| Dimension | L = 520, W = 280, H = 980 | |
| Gross Weight | 40kg | |
| Operating temprature | -28oC to +60oC | |
| Operating Humidity | 5% – 85% | |
| Operating Environment | Indoor & Outdoor(shelter) |
