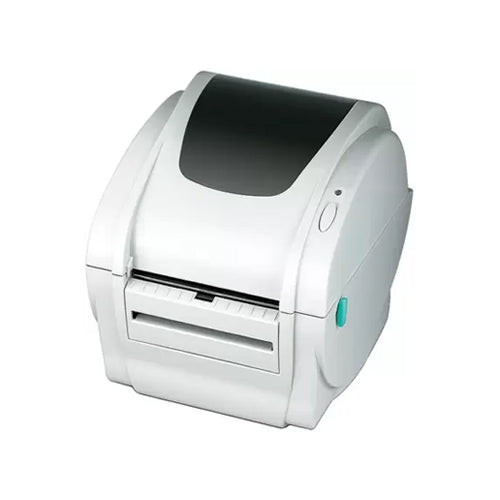

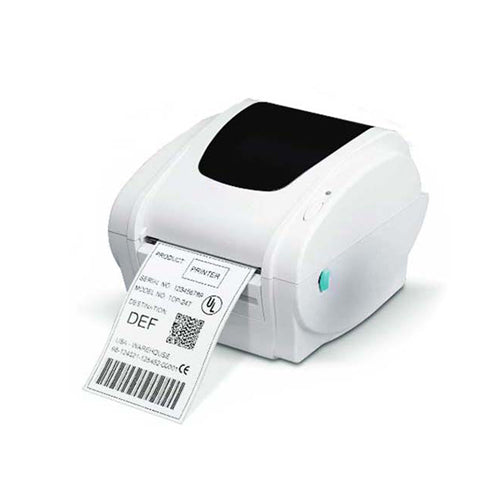

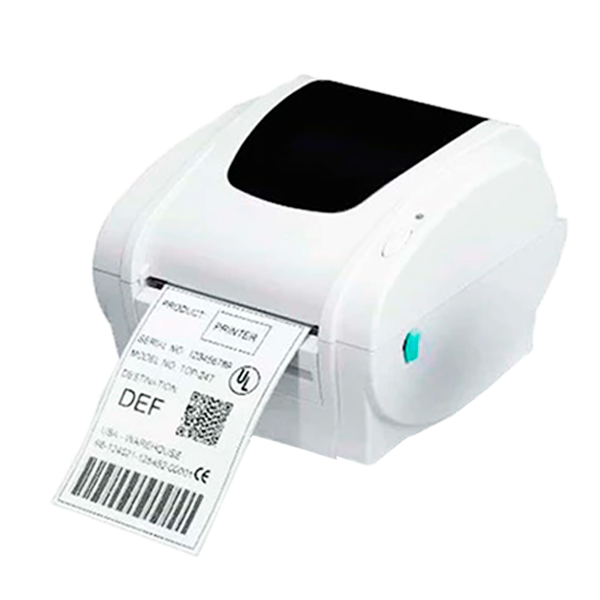

TSC TDP 247 Label Barcode Printer | 203 dpi | USB | 4" Desktop Printer
(Tax & Fright Extra)
Price Excluded GST Tax & Shipping

- Model: TCS TDP 247 Label Barcode Printer
- 4-Inch High Performance Desktop Printers
- Resolution : 203 dpi
- Print Speed : 5 inches per second
- SD memory: 4Gb
- Label Cap 8.4" OD
- Direct thermal print

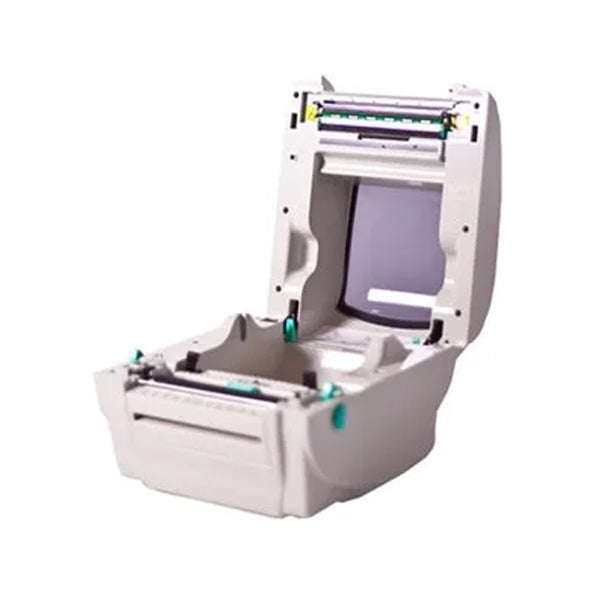

The TDP series features two high-speed models - the TDP-247 and TDP-345 - both ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 inches per second. This model comes standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations. Because of their compact design, the TDP-247 series printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. This is a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side. The TDP-247 series is equipped with a powerful 200 MHz processor, 4 MB of Flash memory, 8 MB SDRAM and an SD memory-expansion slot that increases Flash storage up to 4 GB. Both models support standard industry emulations right out of the box, including Eltron and Zebra printer languages.
Applications:
- Small Office/Home Office Mailing
- Product Marking
- High Resolution Print & Graphics Applications
- File-Folder Labeling
- Retail Point-of-Sale
- Shelf Labeling
- Healthcare Specimen Labeling
- Inventory & Asset Management
- Shipping
The TDP series features two high-speed models - the TDP-247 and TDP-345 - both ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 inches per second. This model comes standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations. Because of their compact design, the TDP-247 series printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. This is a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side. The TDP-247 series is equipped with a powerful 200 MHz processor, 4 MB of Flash memory, 8 MB SDRAM and an SD memory-expansion slot that increases Flash storage up to 4 GB. Both models support standard industry emulations right out of the box, including Eltron and Zebra printer languages.
Applications:
- Small Office/Home Office Mailing
- Product Marking
- High Resolution Print & Graphics Applications
- File-Folder Labeling
- Retail Point-of-Sale
- Shelf Labeling
- Healthcare Specimen Labeling
- Inventory & Asset Management
- Shipping
Physical Characteristics |
|
Resolution |
203 dpi (8 dots/mm) |
Print Method |
Direct thermal only |
Display |
LED with buttons |
Hardware Connectivity |
Ethernet |
Wireless Connectivity |
Bluetooth |
Enterprise Printer Management |
TSC Console |
Type |
Desktop |
Max. Print Speed |
Up to 7 ips (178 mm/s) |
Max. Print Width |
4.25" (108 mm) |
Max. Print Length |
90" (2,286 mm) |
RAM |
8 MB SDRAM |
Flash |
4 MB | Expandable SD memory card reader; up to 4 GB |
Media Specifications |
|
Internal Label Capacity |
5" (127 mm) OD |
Max. Media Width |
0.78" - 4.4" (20 - 112 mm) |
Media Type |
Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound) |
Media Core Diameter |
1" - 3" (25.4 - 76.2 mm) |
