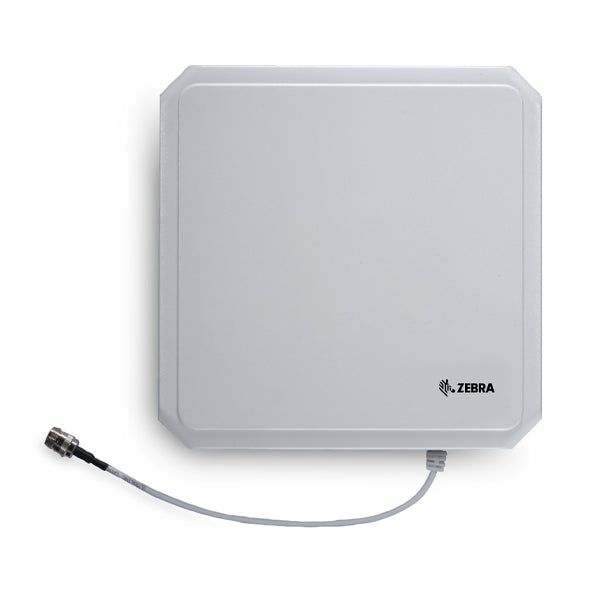

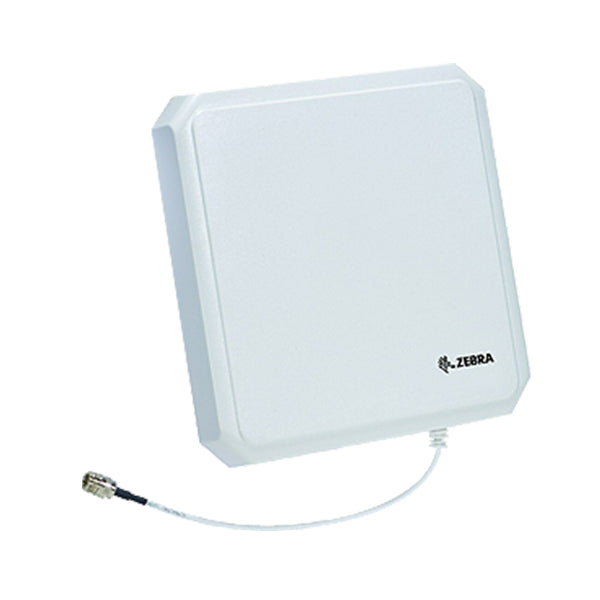

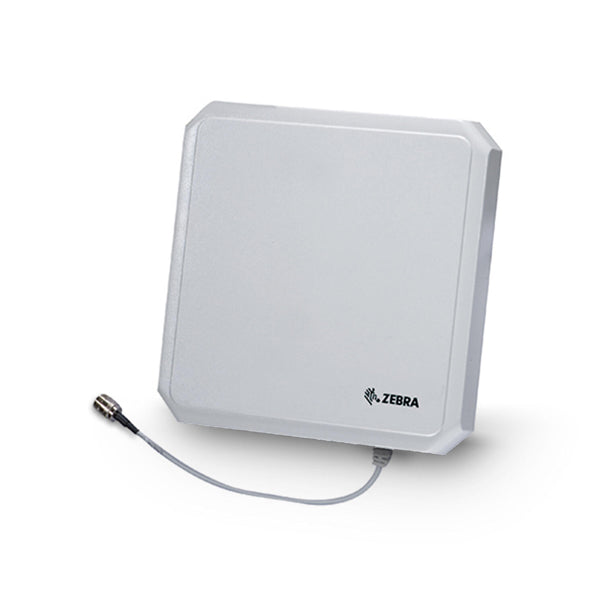

Zebra AN480 Wide-Band RFID Antenna Reader | 865 – 956 MHz
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Zebra AN480 Wide-Band RFID Antenna Reader | 865 – 956 MHz

Available:In Stock


Rs. 13,900.00

(Tax & Fright Extra)

Price Excluded GST Tax & Shipping

CLICK HERE FOR BULK INQUIRY

+91 8411958300




info@srkinnovation.com

  • Connector: N-Type Female
  • Weight: 2.5 lbs./1.13 kg
  • Casing/Materials: Aluminum with white plastic Cover
  • Frequency Ranges: 865 – 956 MHz
  • IP Sealing: IP54
  • 1 Year Warranty in all products
  • SDK and APIs are available for support
  • X

    The AN480 single-port antenna offers maximum performance and flexibility. The low axial ratio is nearly 50 percent lower than typical competitive devices, delivering a more uniform gain — and better performance. The wide frequency range enables this antenna to be utilized in worldwide deployments, providing cost-efficiencies and a simplified RFID infrastructure. The AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments, or any dock door receiving application. As with all Zebra antennas, the AN480 uses Zebra’s standard mounting bracket — mounting the antenna for the first time or upgrading an existing Zebra antenna with the AN480 is fast and easy.



    The AN480 single-port antenna offers maximum performance and flexibility. The low axial ratio is nearly 50 percent lower than typical competitive devices, delivering a more uniform gain — and better performance. The wide frequency range enables this antenna to be utilized in worldwide deployments, providing cost-efficiencies and a simplified RFID infrastructure. The AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments, or any dock door receiving application. As with all Zebra antennas, the AN480 uses Zebra’s standard mounting bracket — mounting the antenna for the first time or upgrading an existing Zebra antenna with the AN480 is fast and easy.



    Polarization

    left-hand circular or Right-hand circular

    Dimensions

    259.1 mm x 259.1 mm x 33.5 mm/

    10.2 in. x 10.2 in x 1.32 in

    Connector

    N-Type Female

    Connector Location

    Rear

    Mounting Options

    Mounting studs provided

    Weight

    2.5 lbs./1.13 kg

    Casing/Materials

    Aluminum with white plastic Cover

    Frequency Ranges

    865 – 956 MHz

    VSWR (Return Loss)

    1.3:1

    Gain

    6.0

    Front to Back Ratio

    dBiL 18 dB

    Temperature Storage

    40° to +70°C/-40° to +158°F

    Axial Ratio Operating

    1.5 dB typical

    Maximum Power

    2 Watts

    IP Sealing

    IP54

    Humidity

    IEC-68-2-30
